1949-1979 Volkswagen Transporter Radiator Kit by Wagner Tuning

Competition Radiator Kit for the VW T6 2.0(Bi)TDI The 2.0 Liter TDI engine of VW T6 is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit.

A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the Wagner Tuning upgrade water cooler comes into play.

The new developed competition racing cores of the Wagner Tuning high performance water coolers increase the radiator volume of the OEM water coolers by 30 Percent. The calculated ratio between the inner and outer Cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange.

The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The nearly plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

• Volkswagen T6 2.0 TDI: 62-110KW/84-150 PS (2016-2019)
• Volkswagen T6.1 2.0 TDI: 66-110KW/84-150 PS (2019-)
• Volkswagen T6 2.0BiTDI: 146-150KW/199- 204 PS (2016-2019)
• Volkswagen T6.1 2.0BiTDI: 146-150KW/199- 204 PS (2019-)

Dimensions OEM front mounted radiator:

• 714 mm x 245 mm x 54 mm / 28,1 Inch x 10Inch x 2,1 Inch
• V = 9,5 Liter
• A = 1750cm/ 271,3 Inch

Dimensions WT front mounted radiator:

• 710 mm x 311 mm x 56 mm / 28Inch x 122 Inch x 22 Inch
• V = 12,4 Liter (+30 Percent)
• A = 2208 cm/ 3422 Inch (+26 Percent)

Kit Comes With:

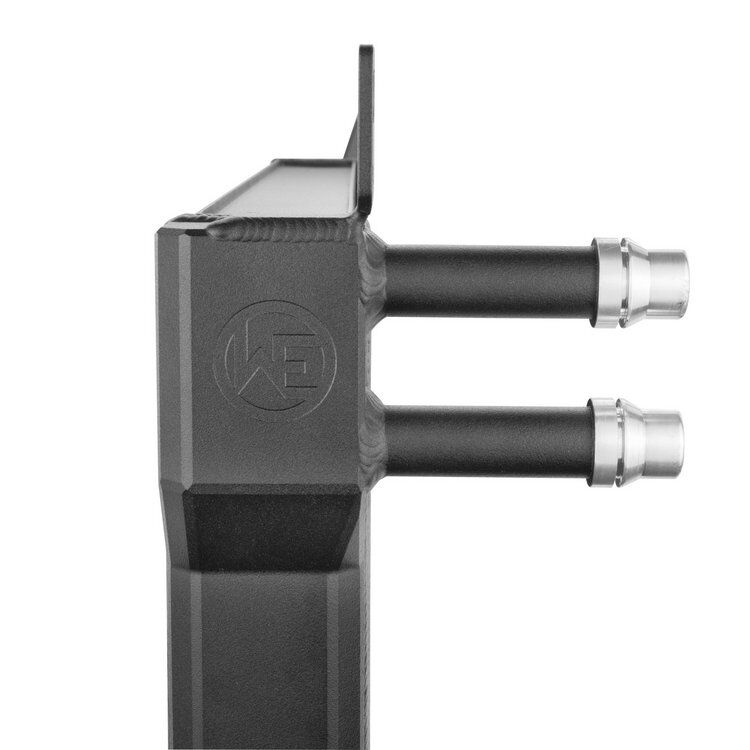

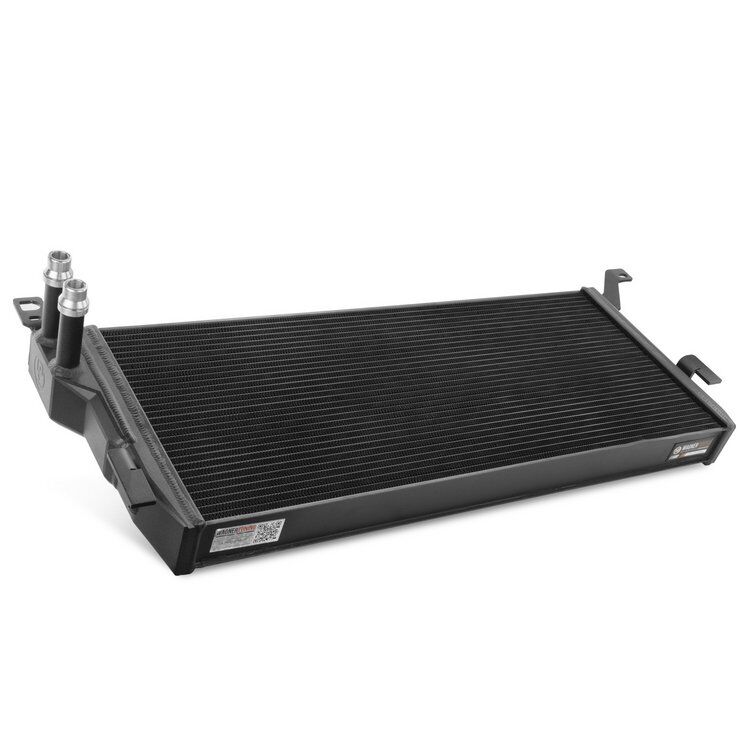

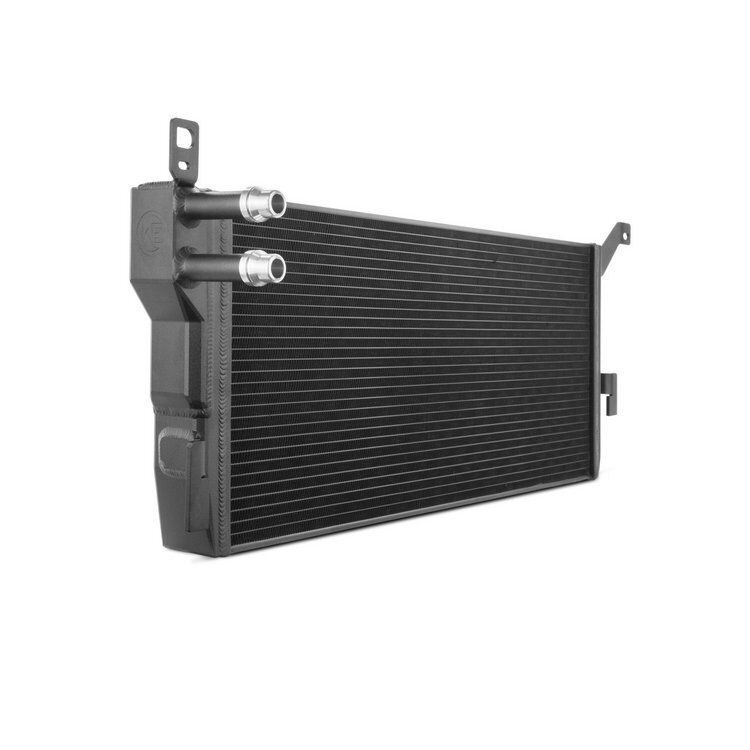

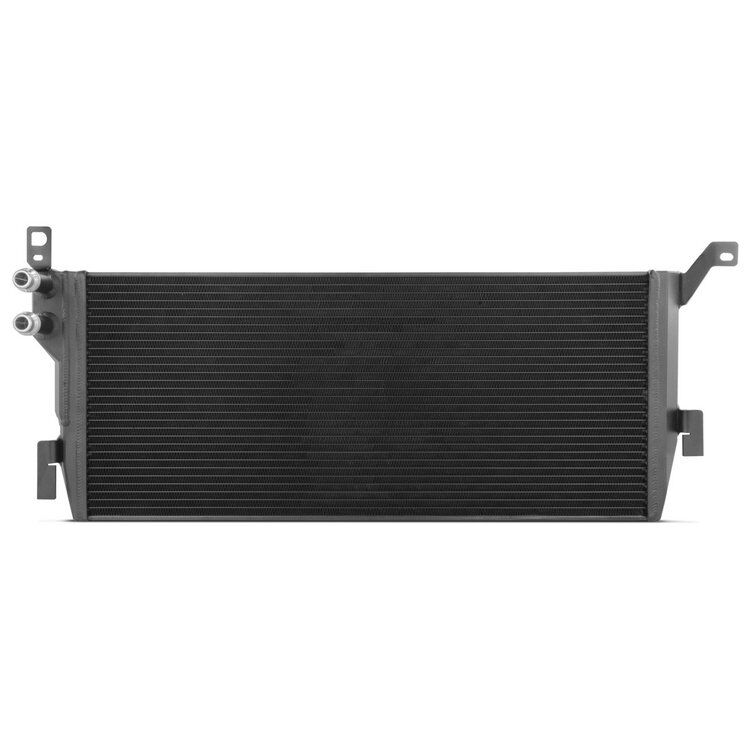

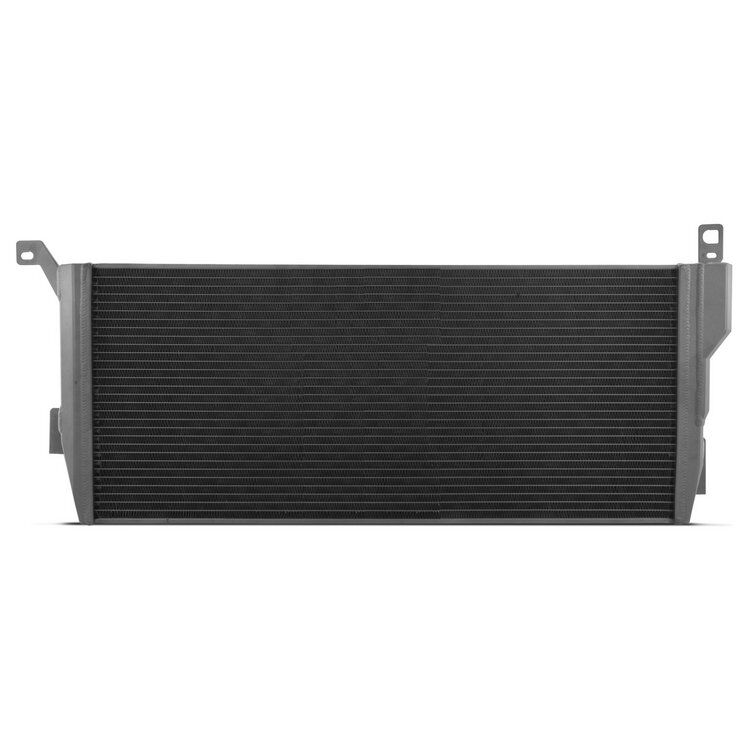

• 1x front mounted radiator Black coated (low-temperature circuit)
• 1x installation instruction
