1999-2003 Ford F-550 Super Duty Turbo Diesel V8 7.3L BladeRunner GT Series Turbocharger - 46-60072

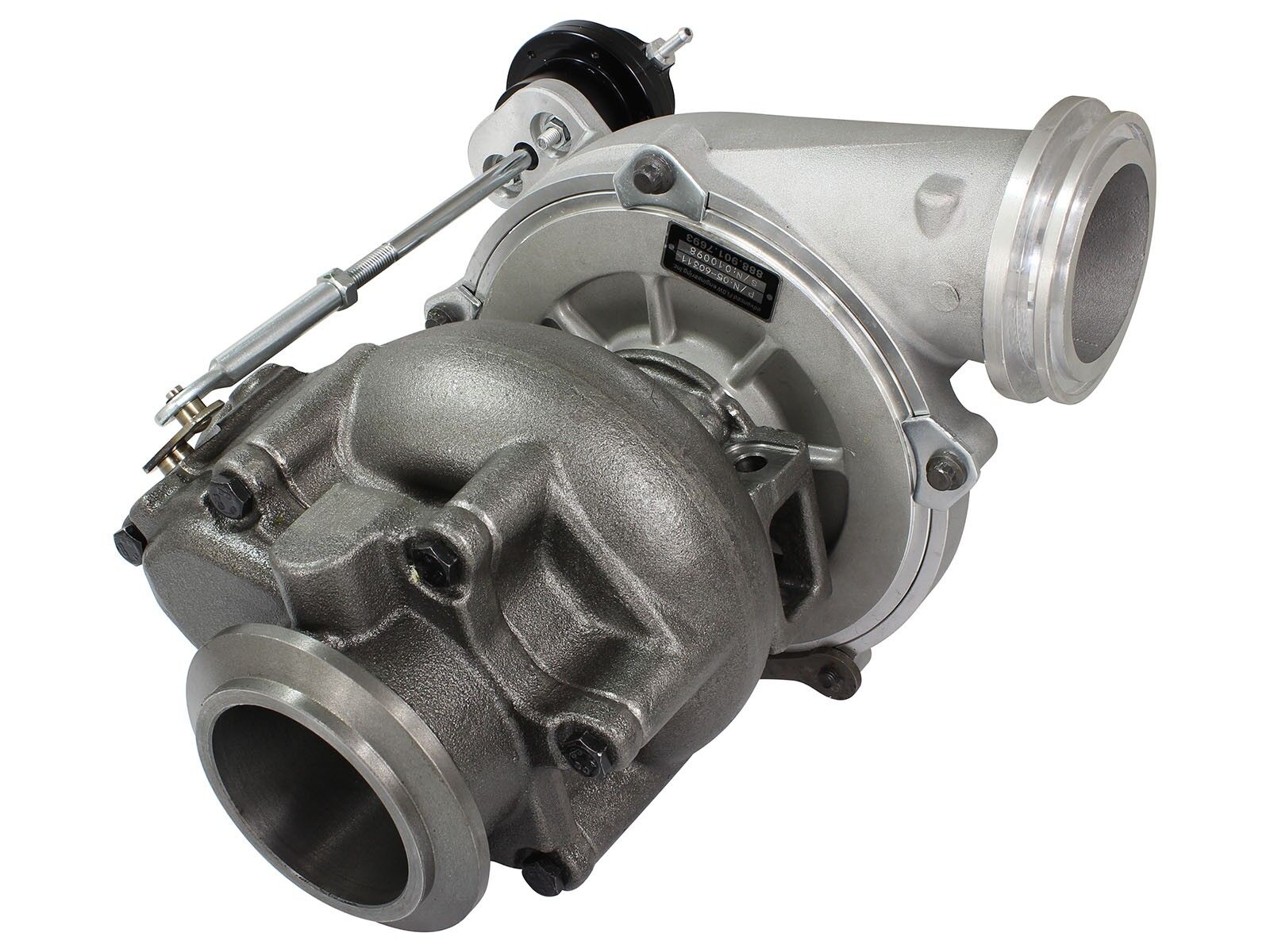

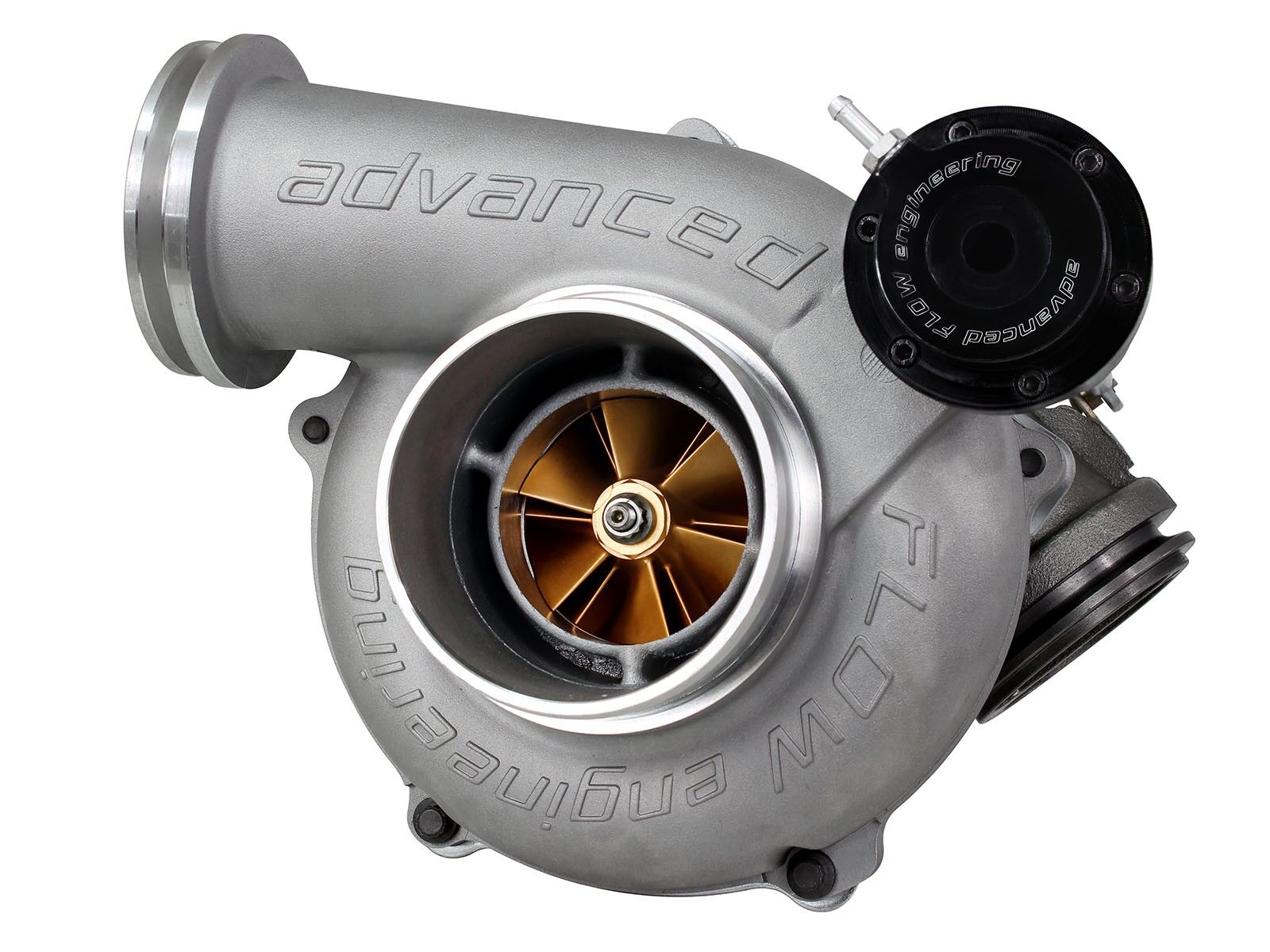

1999-2003 Ford F-550 Super Duty Turbo Diesel V8 7.3L BladeRunner GT Series Turbocharger

SKU
211167
Availability
Normally ships in ~1-2 business days.
$1,988.00
Free Shipping (within lower 48 states)
-
+

Specifications:
Compressor Inducer - 66 mm
Compressor Exducer - 88 mm/ Trim 56
Turbine Inducer - 76 mm
Turbine Exducer - 67 mm/ Trim 78
Exhaust A/R - 1.0

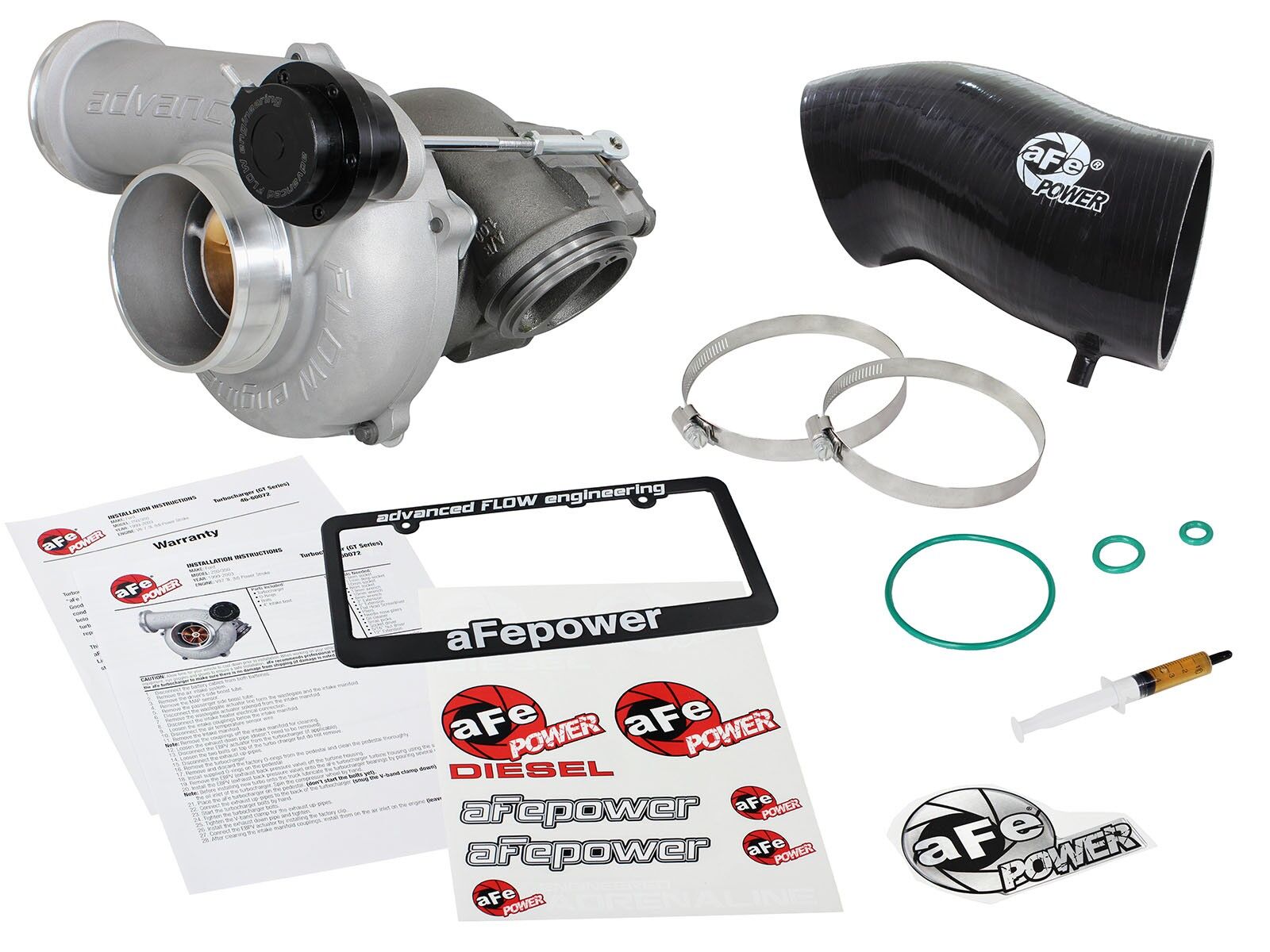

4" Anti-Surge Chamber w/ High-Temp 5-Ply Silicone torque booster tube:
This turbo has an oversized 4" inlet featuring a ported shroud compressor housing. A 5-PLY reinforced high temperature silicone torque booster tube is included for a hassle-free installation.

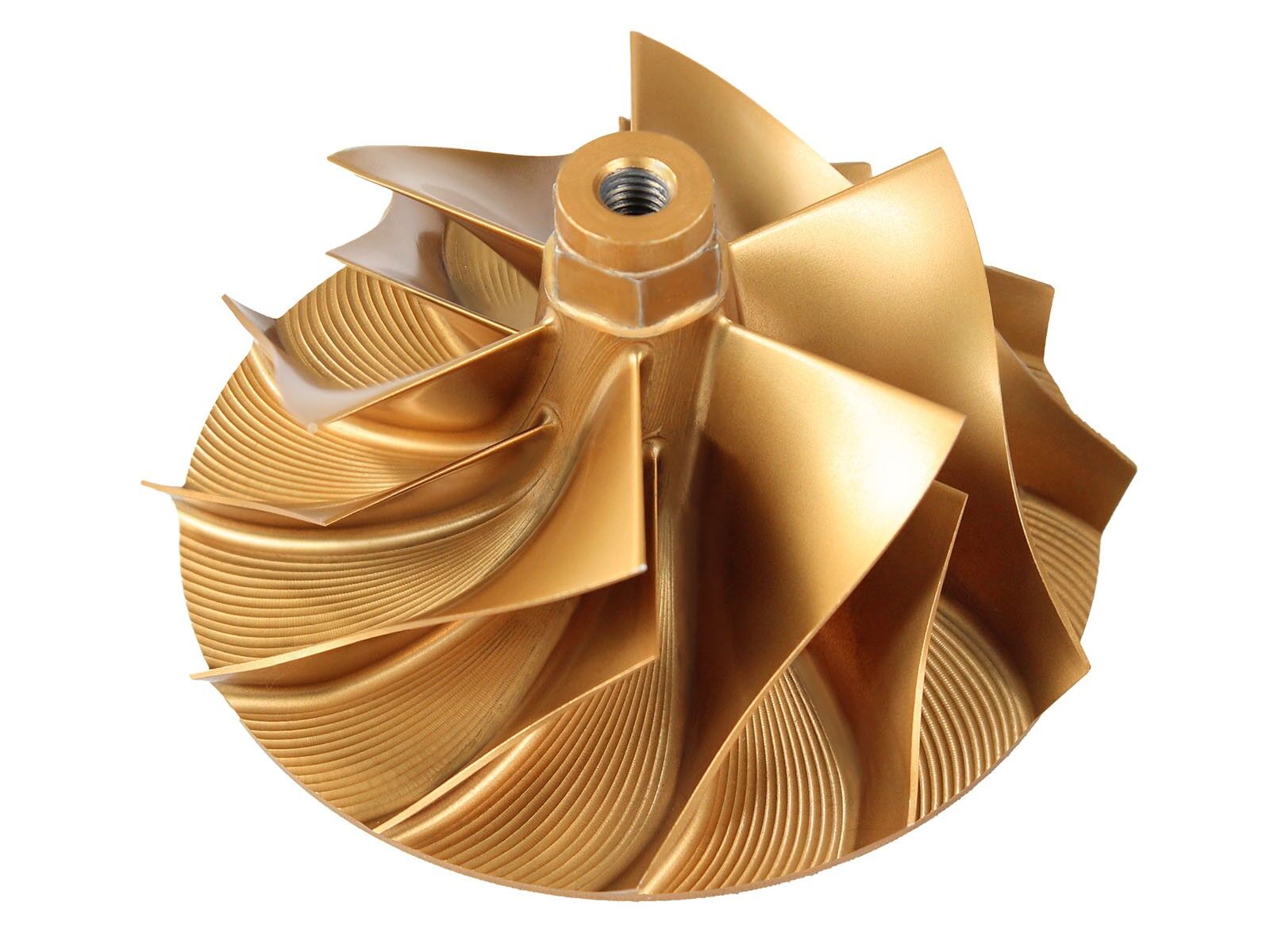

Billet Wheel:
The compressor features a gold anodized 6/12 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo.

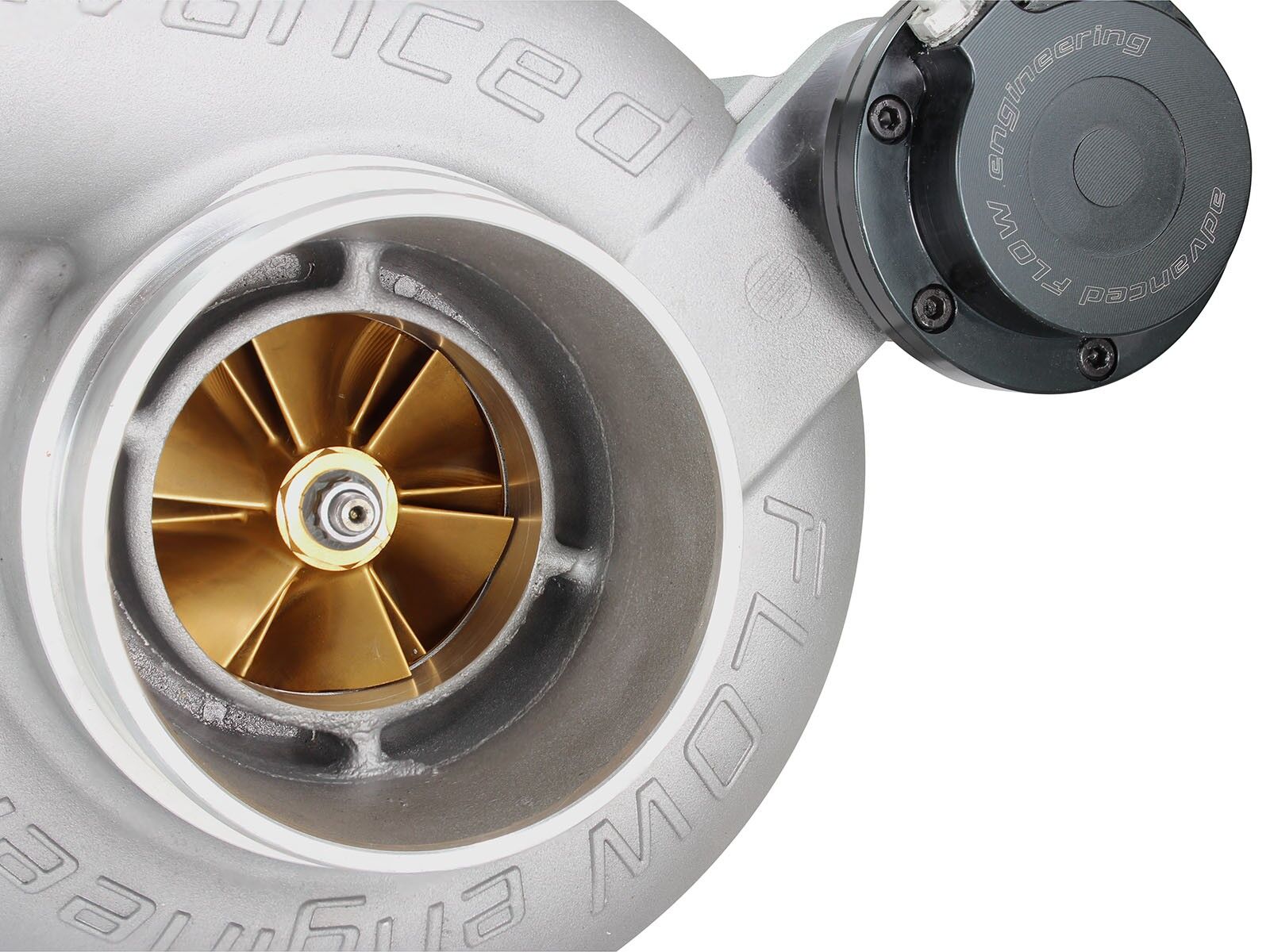

Compressor:
The compressor features a light-weight billet aluminum compressor wheel with a 66mm inducer and 88mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator.

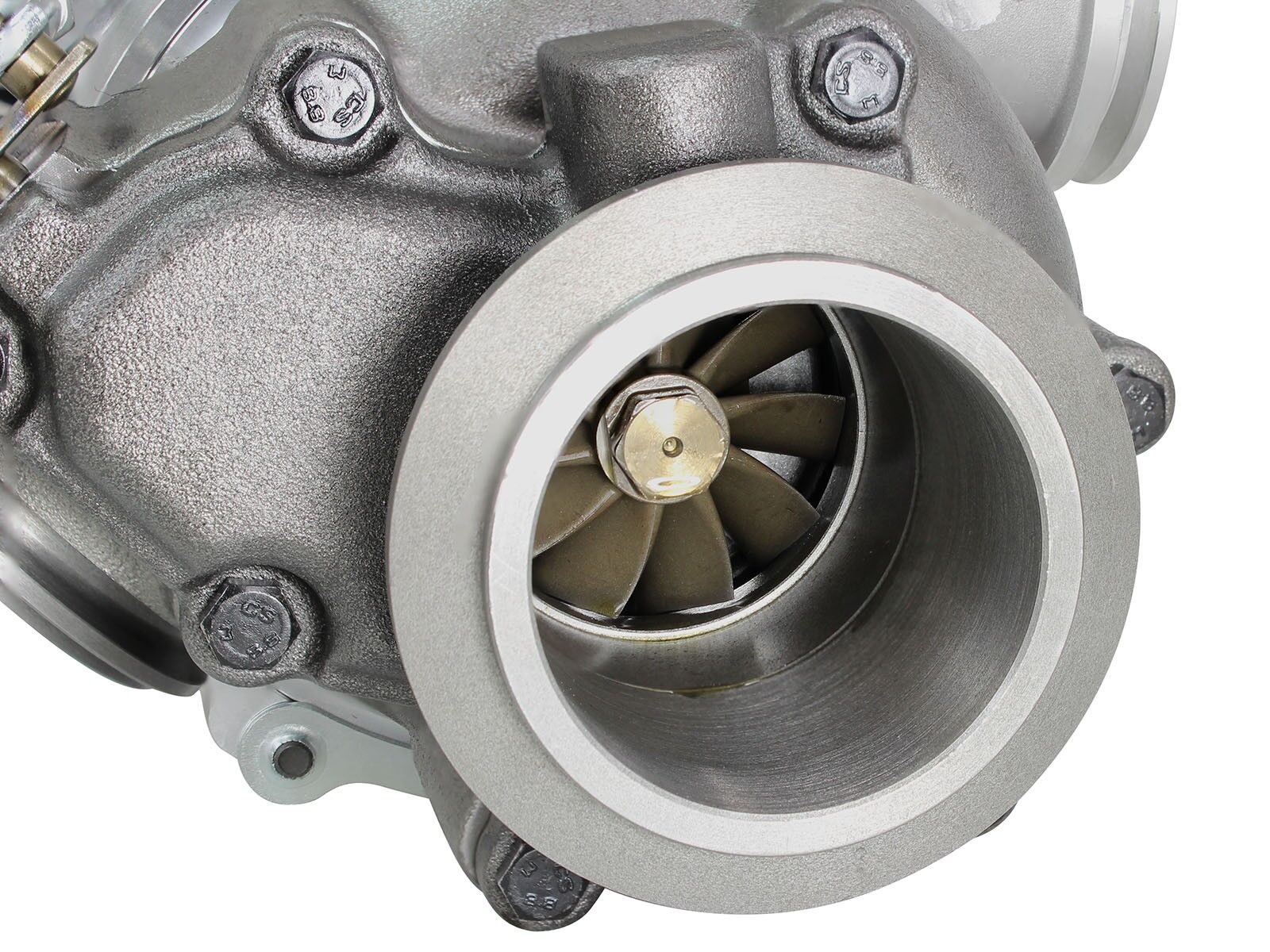

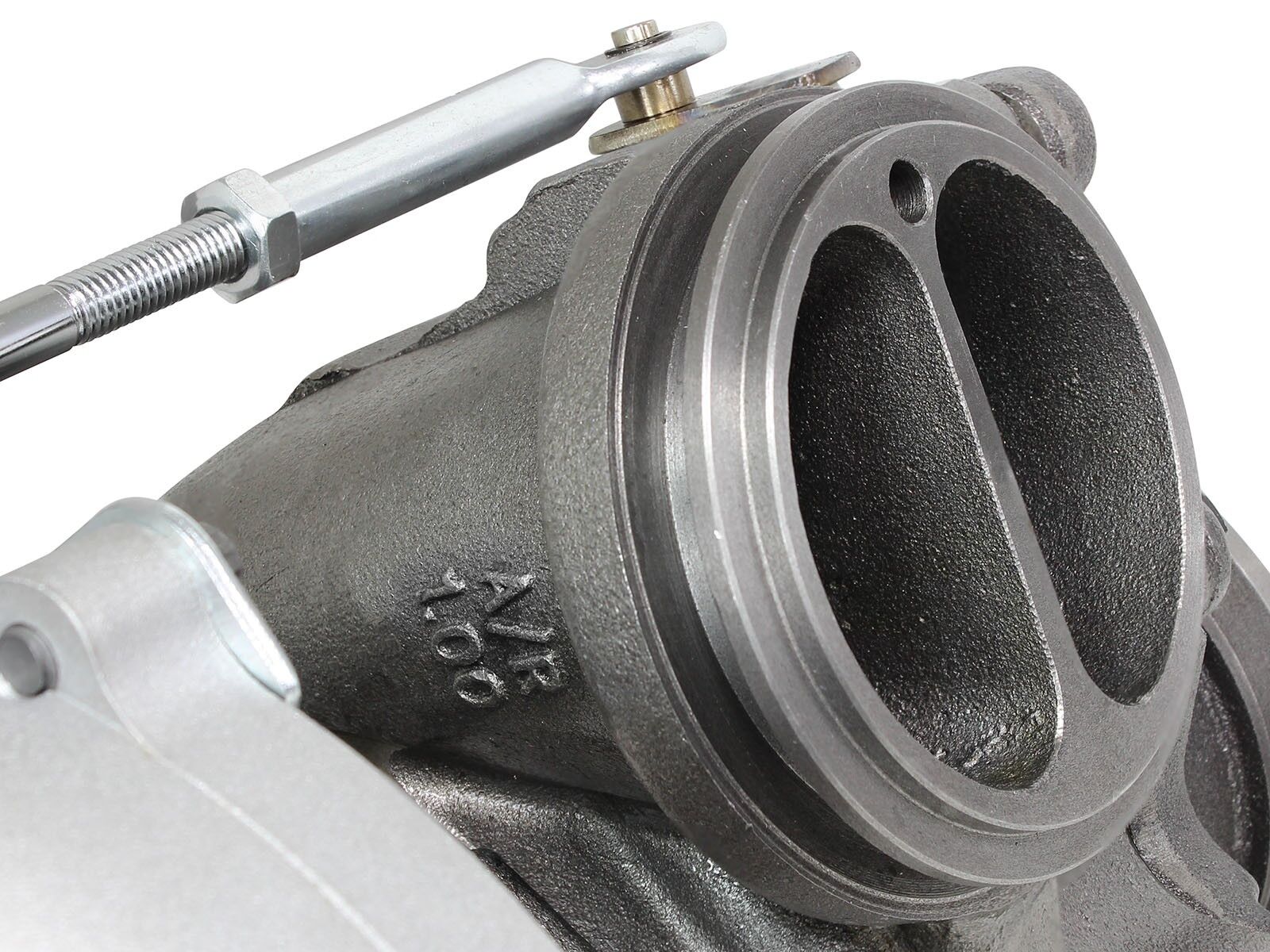

1.0 A/R Turbine Housing:
The larger 1.0 A/R housing vs. Stock .84 A/R results in lower EGT's.

Direct Replacement:

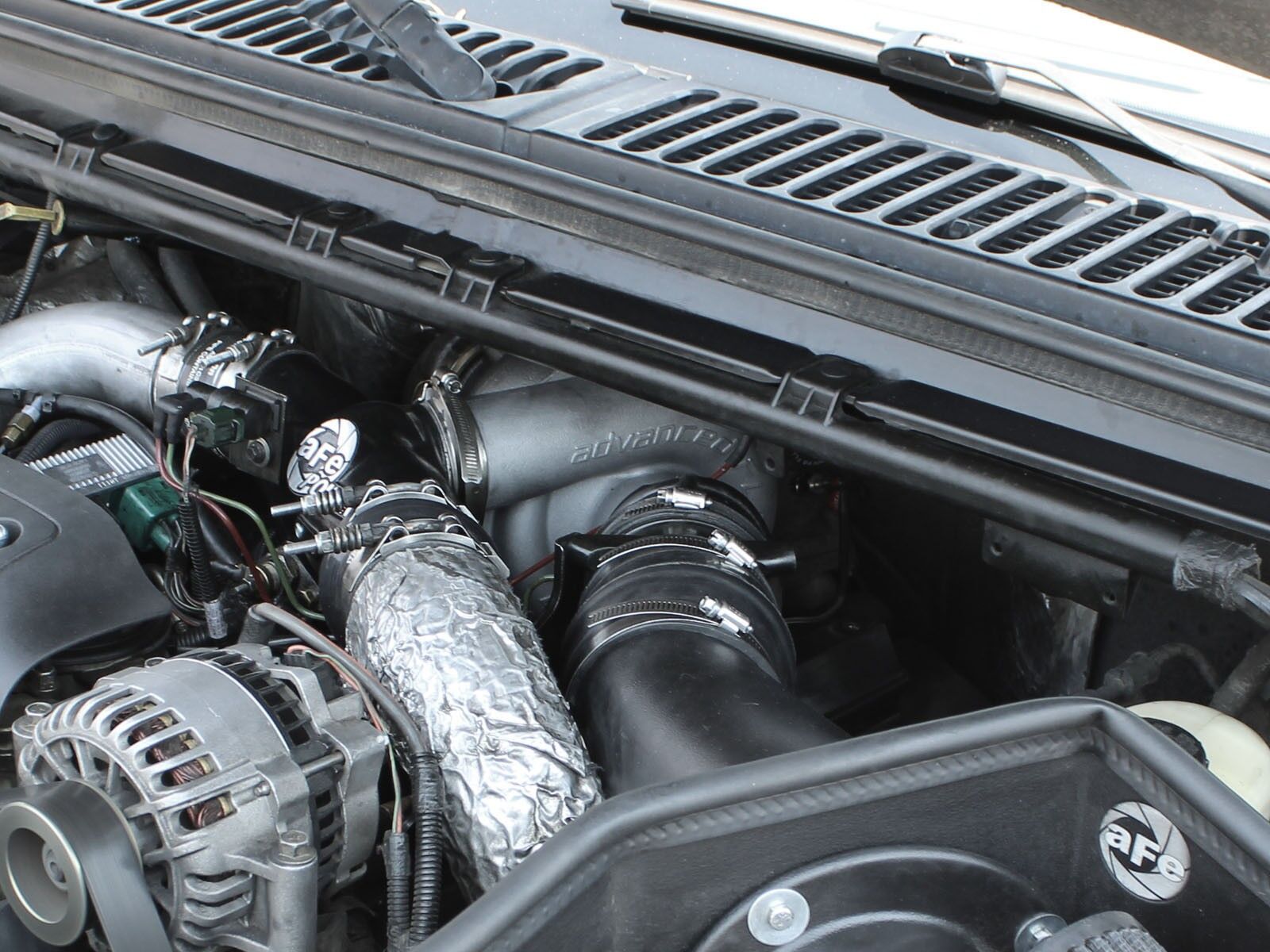

This turbo can be installed on 1999.5-2003 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.

*Dyno results with aftermarket tuner set on performance

Note:
This is a "Race Only" product used solely for competition. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use including recreational off-road use could be in violation of local, state and federal laws.

  • In house testing produced a max gain of +49 horsepower and +124 lbs. x ft. of torque, verified by our in house dyno*
  • Stock upgrade with no core charge
  • A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
  • Billet adjustable wastegate actuator is included
  • Torque booster tube is included
  • 2-Year Warranty

Installation Notes:

Professional installation required.
