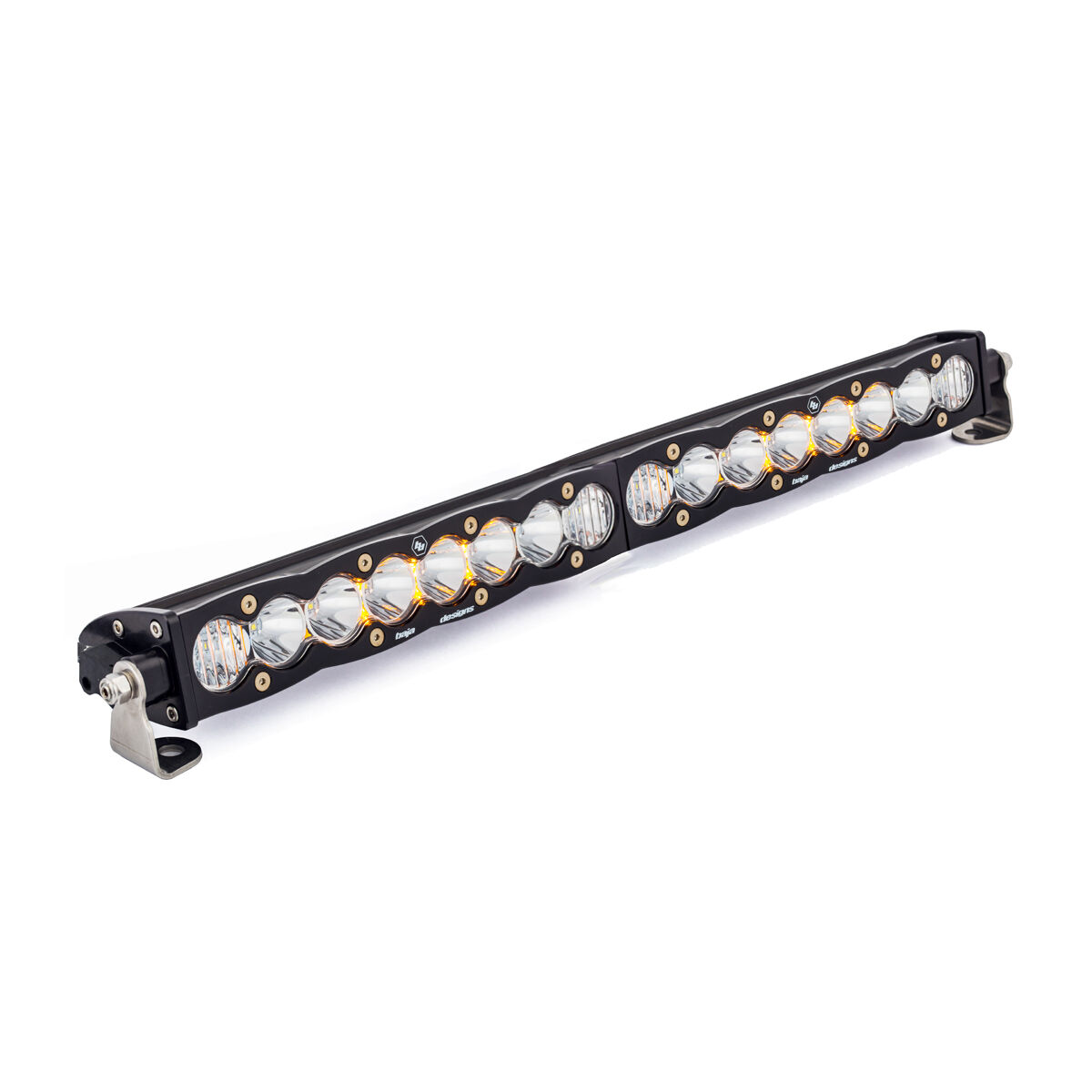

20 Inch LED Light Bar Single Straight Driving Combo Pattern S8 Series by Baja Designs
SKU
269810
$596.95
Free Shipping
(within lower 48 states)
Baja Designs is an industry-leading innovator in off-road and performance lighting, widely known as "The Scientists of Lighting." Baja Designs’ offerings span automotive, motorcycle, UTV/ATV, marine, industrial, and even government/military lighting solutions. Their portfolio includes vehicle-specific lighting kits, light bars, DOT-legal headlights (such as the DOT LP6), rear chase lights (the RTL series), and full power distribution systems via sPOD integration.
The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10 inch section, the S8 is available from 10 inch to 50 inch, features high-performance reflectors and the additional feature of an amber backlight makes the S8 a light bar that shines with your vehicle.
The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection!
Note: This light does Not include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10 inch-30 inch).
ELS Scores:Effective Lighting Score (ELS)S8 10 inch Driving Combo (Clear): ELS 116 degree / 7.1/ 323'/ 4910
S8 10 inch Spot (Clear): ELS 88 degree / 6.2/ 329'/ 4690
S8 10 inch Wide Cornering (Clear): ELS 126 degree / 6.5/ 158'/ 4595
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Installation Notes:
Professional installation is recommended.
Specifications:
Universal: Yes.
Sold As: Each.
Series: S8 Series.
Lumens: 9040.
Light Pattern: Driving/Combo.
Housing Type: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize.
Life Expectancy: 49,930 Hours.
Lens Material: Hard Coated Polycarbonate.
Lens Color: Clear.
IK10 Compliant: IK10 Compliant (Mechanical Impact Testing).
Color: Black.
Wattage/Amp: 80W / 6.66A.
Waterproof Rating: IP69K Waterproof.
Bezel Material: Billet Machined Aluminum.
Bracket Material: Stainless Steel.
Bar Length: 20.0 Inch.
Bar Type: Single Straight.
Backlight Warranty: Complete Purchase Protection.
Fitment & Application:
| Brand | Baja Designs |
|---|---|
| Part Number | BAJ-702003 |
| Shipping Method | UPS/FedEx/USPS Ground |
