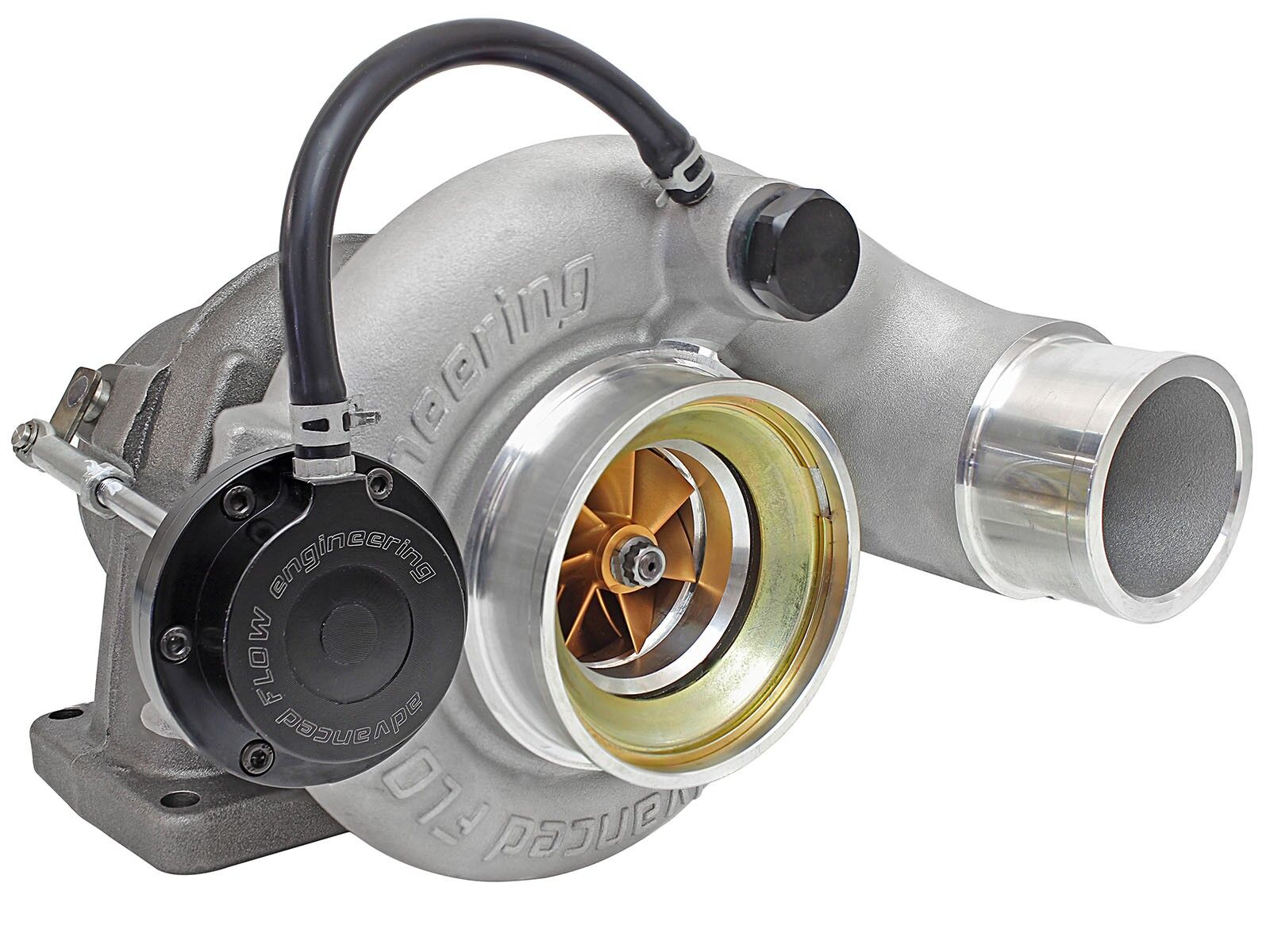

2003-2007 Dodge Ram 3500 Cummins Turbo Diesel 5.9L BladeRunner GT Series Turbocharger - 46-60052-1
2003-2007 Dodge Ram 3500 Cummins Turbo Diesel 5.9L BladeRunner GT Series Turbocharger - 46-60052-1

2003-2007 Dodge Ram 3500 Cummins Turbo Diesel 5.9L BladeRunner GT Series Turbocharger

SKU
211156
Availability
Normally ships in ~1-2 business days.
$1,988.00
Free Shipping (within lower 48 states)
-
+

Specifications:
Compressor Inducer - 60 mm/Trim: 45
Compressor Exducer - 89.7 mm
Turbine Inducer - 65 mm
Turbine Exducer - 58 mm
Turbo Housing: 12 CM2

Billet Wheel:
The compressor features a gold anodized 7/14 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo.

Compressor:
The compressor features a light-weight billet aluminum compressor wheel with a 60mm inducer and 89.7mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator.

Direct Replacement:
This turbo can be installed on 2003-2007 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.

*Before/After Dyno results with aftermarket tuner set on performance.

Note:
This is a "Race Only" product used solely for competition. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use including recreational off-road use could be in violation of local, state and federal laws.

  • +51 HP and +124 lbs. x ft. Torque max gains, verified by our in house dyno*
  • Stock replacement with no core charge
  • A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
  • Additional fueling is not required
  • Billet adjustable wastegate actuator included, comes preset to 40 PSI
  • 2-Year Warranty
  • Read More

Installation Notes:

Professional installation required.
