Specifications: Compressor Inducer - 60 mm /Trim: 48 Compressor Exducer - 87 mm Turbine Inducer - 68 mm Turbine Exducer - 58 mm Turbine Housing: 12 CM2
Direct Replacement:

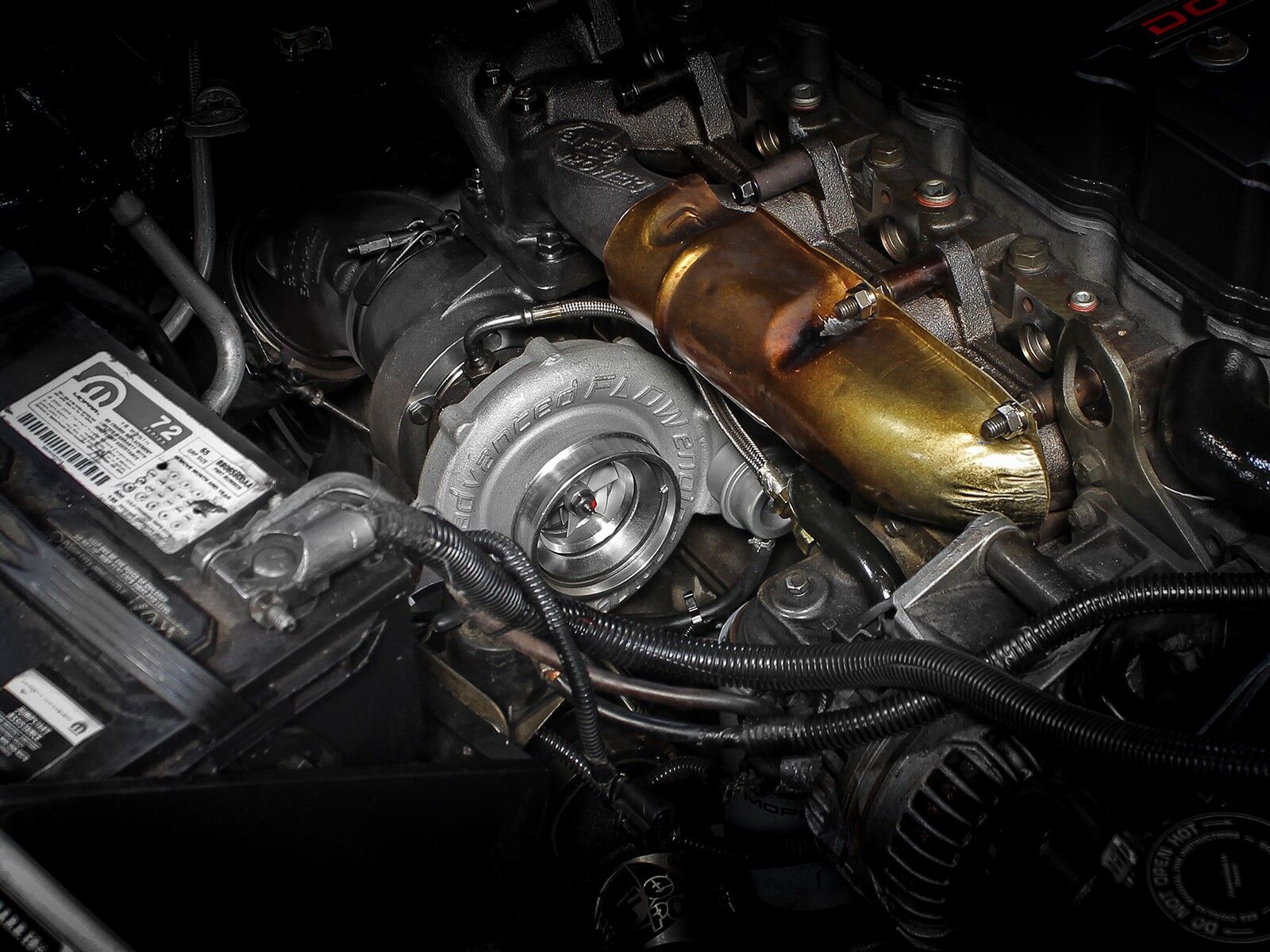

This turbo can be installed on 2003-2007 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection.

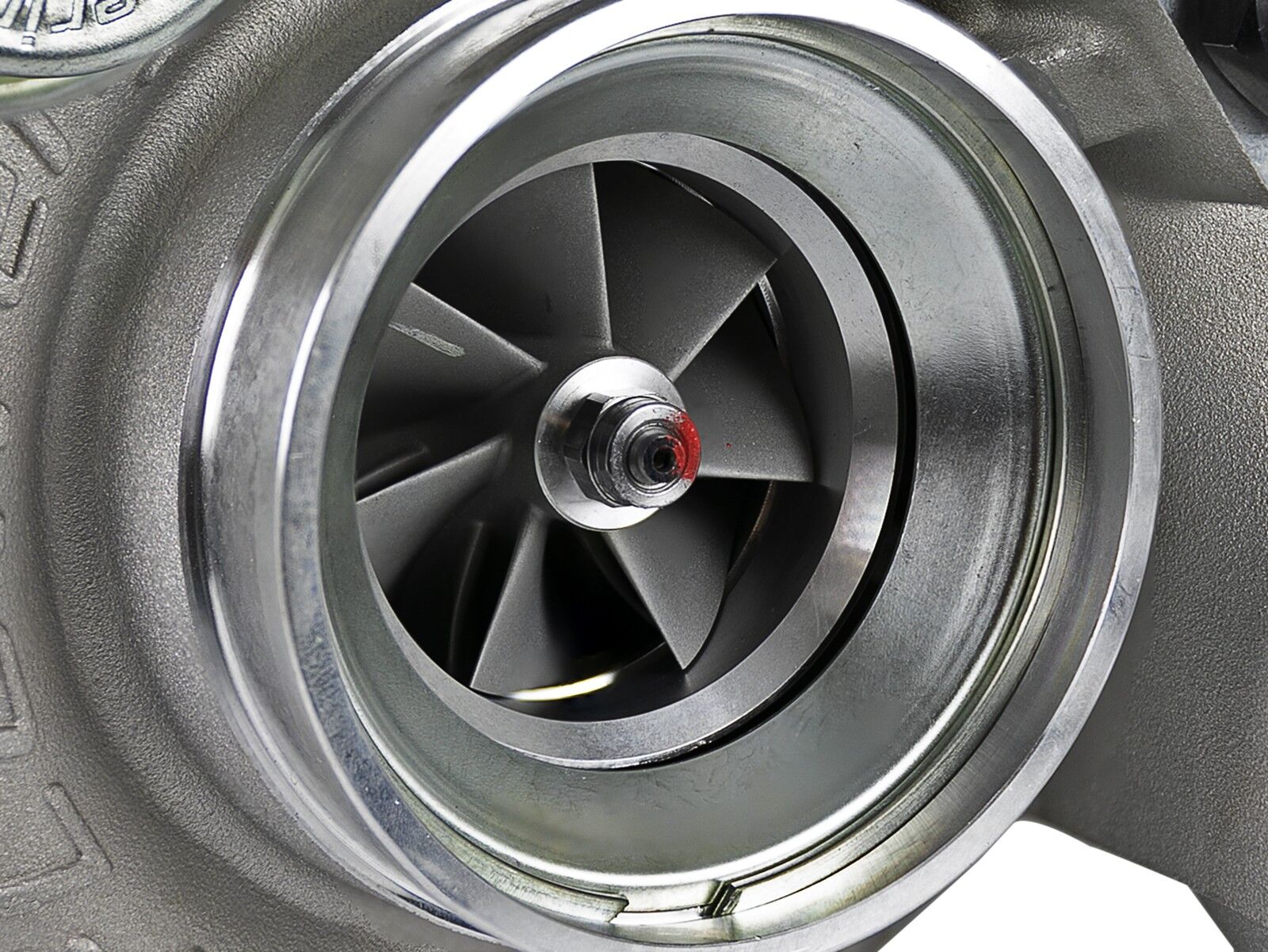

Compressor: The housing utilizes OE inlet and outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset to factory setting.

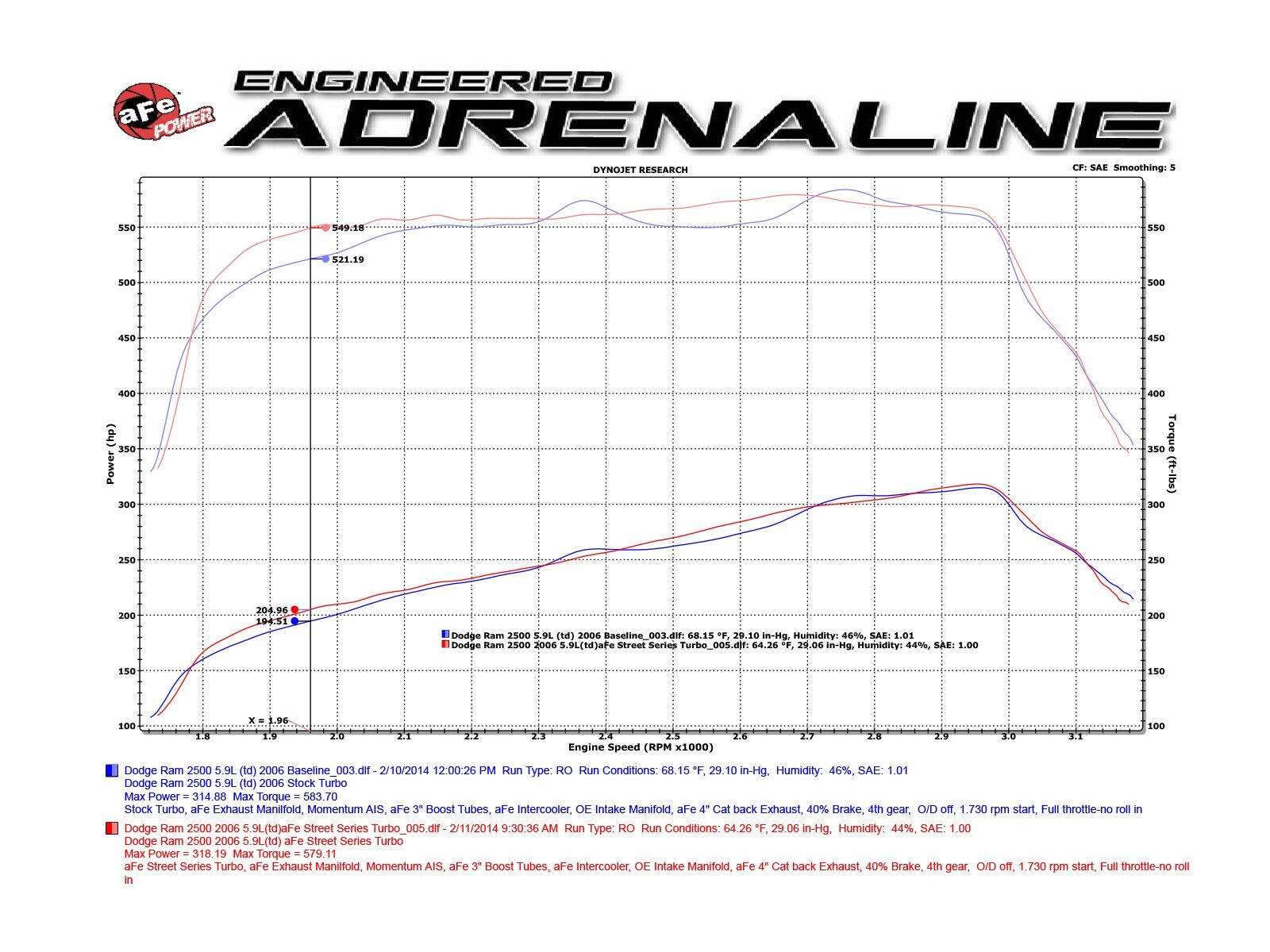

In house testing produced a max gain of +10 horsepower and +28 lbs. x ft. of torque, verified by our in house dyno
Stock Replacement with no core charge
A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
Additional fueling is not required
Wastegate actuator is included, comes preset to factory specifications
