Apexi offers high quality products at completitive prices. Manufactured using cutting-edge technology and vigorous testing, Apexi performance products are what most enthusiasts and racers demand. Most Apexi performance proucts are made in Japan.

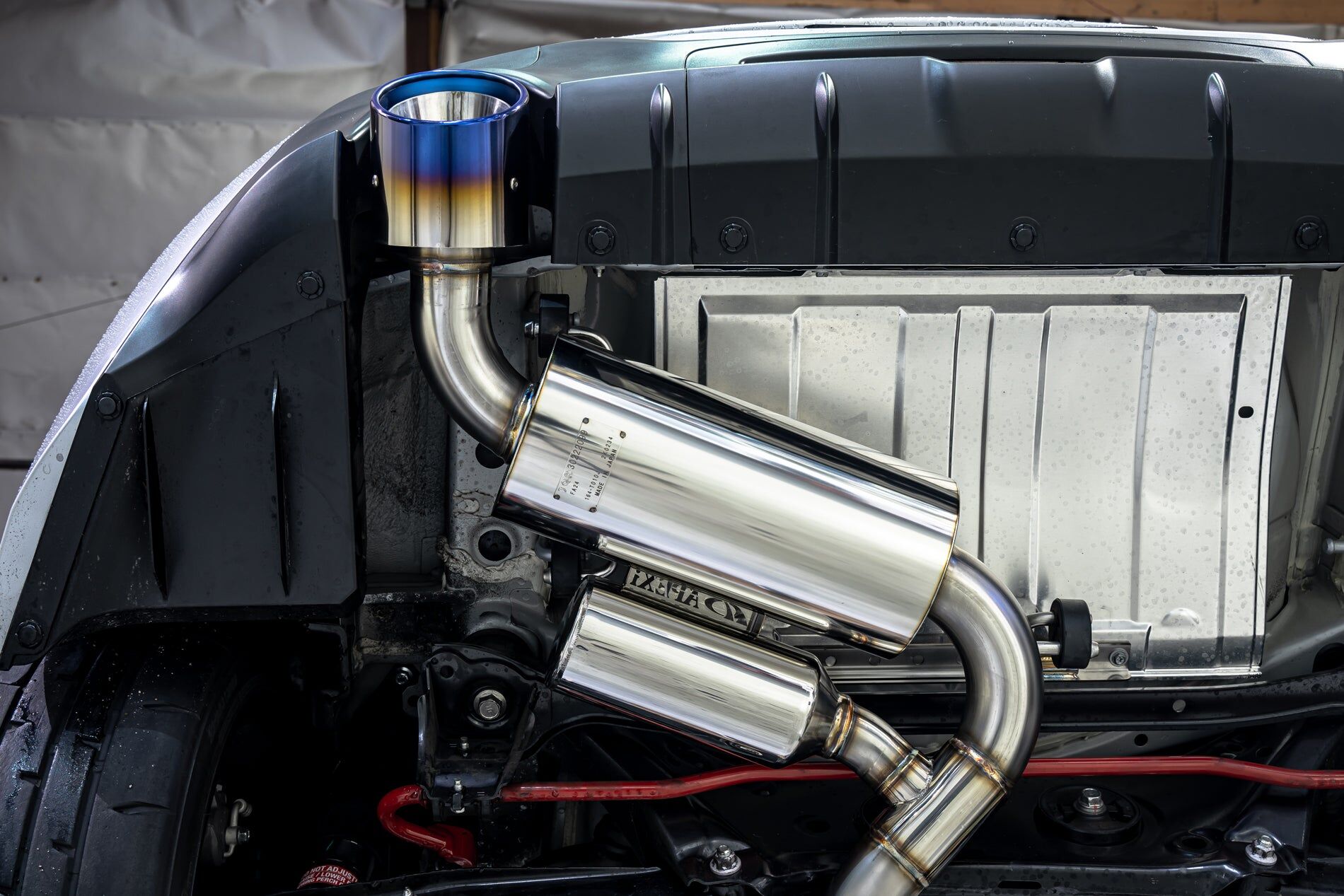

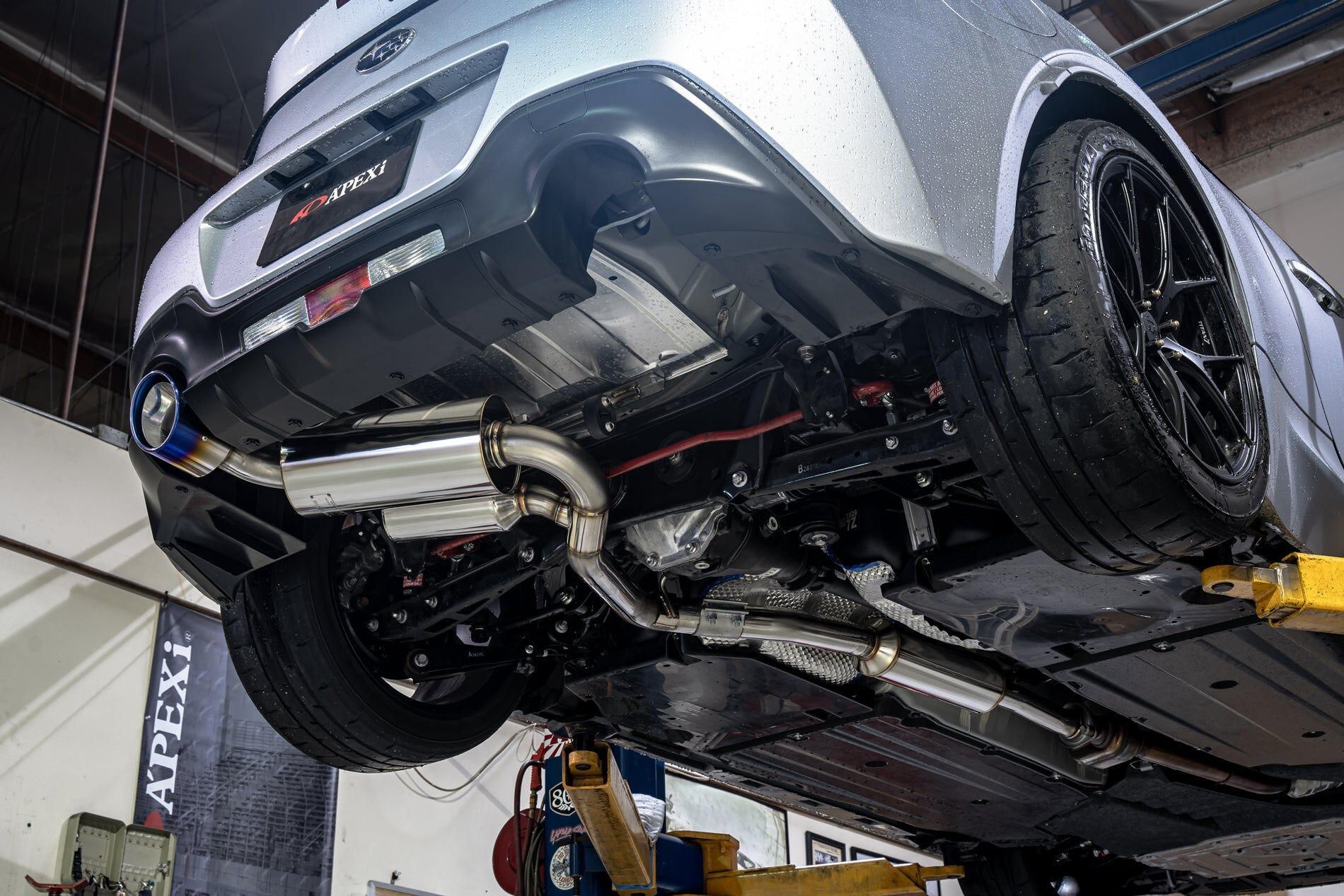

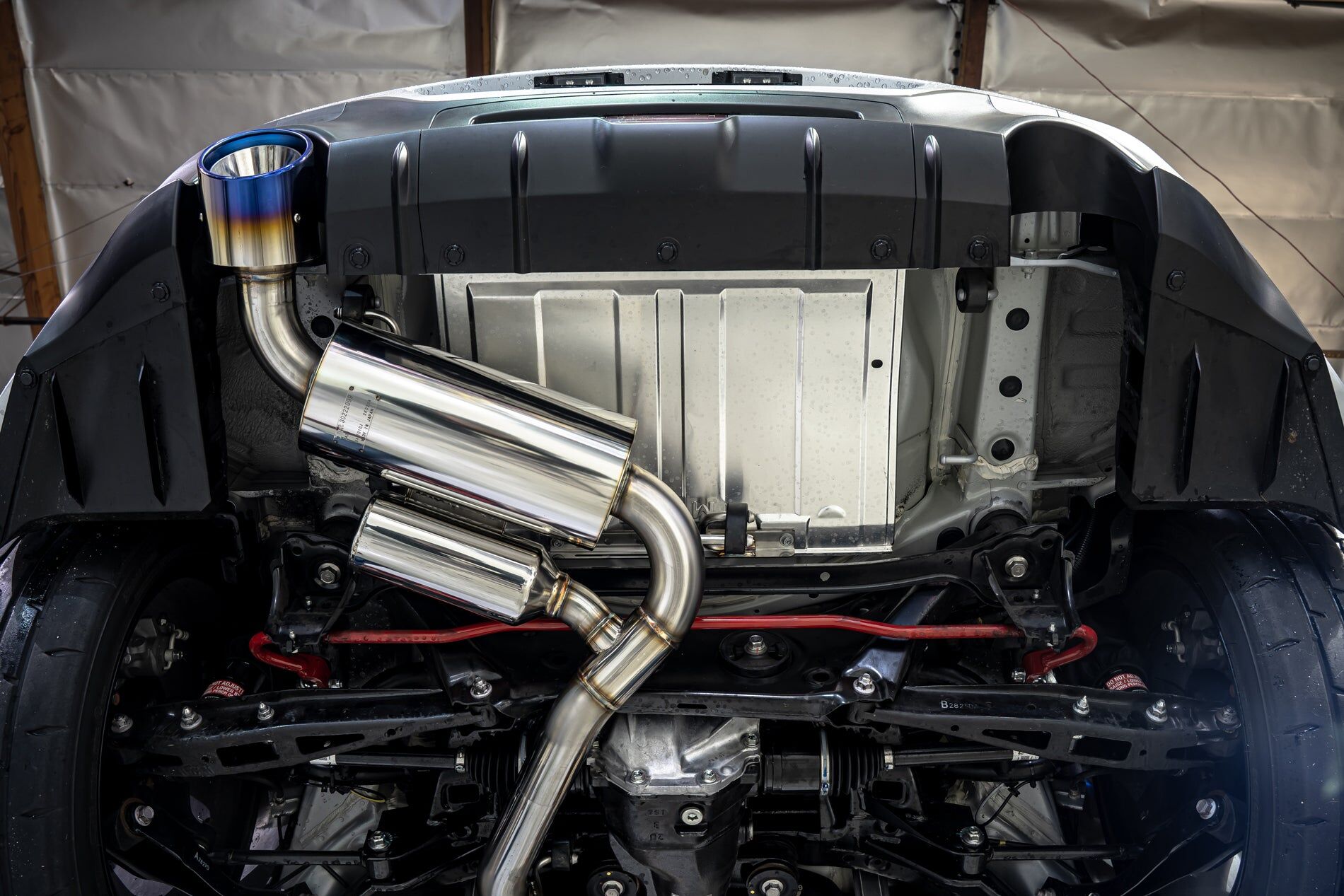

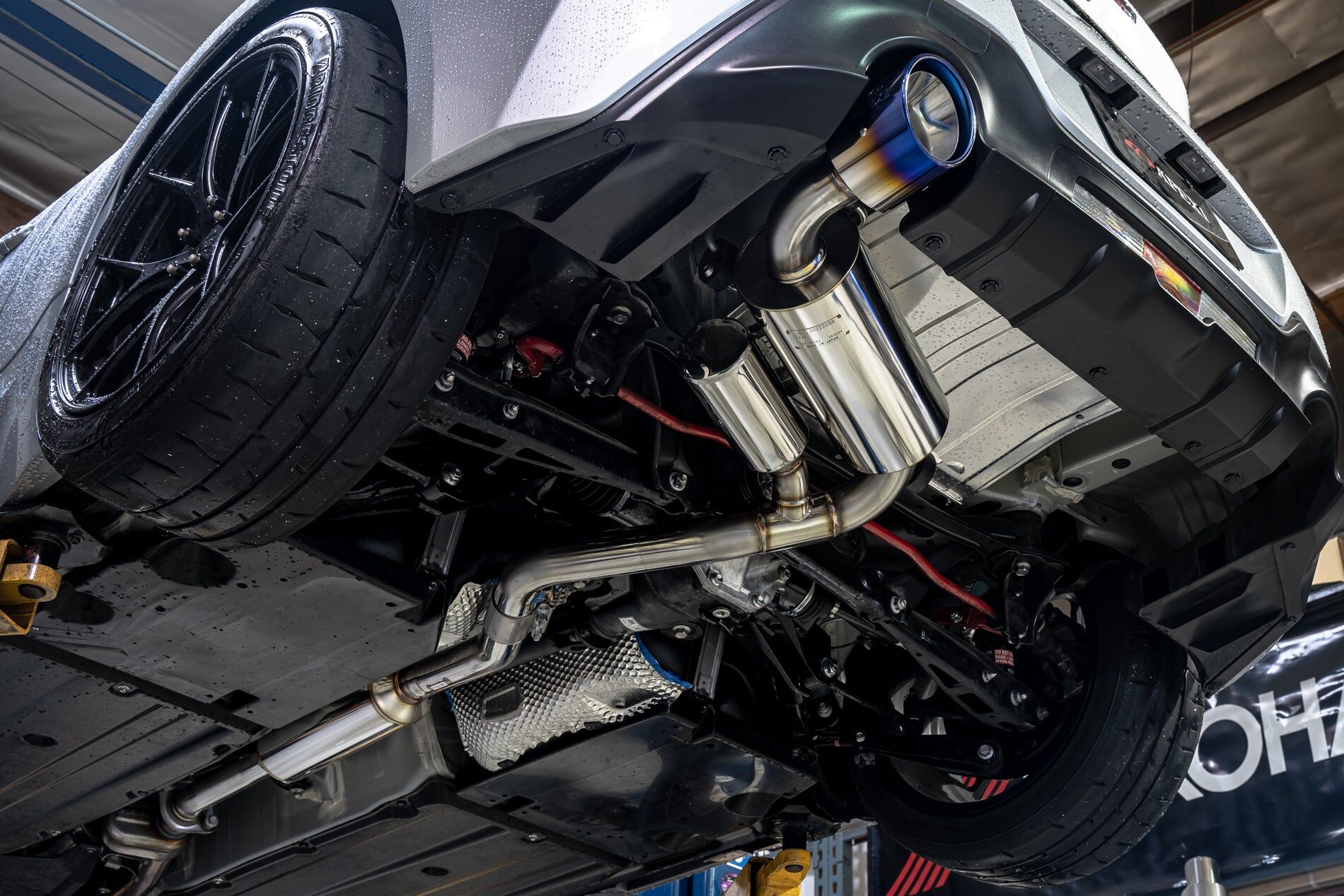

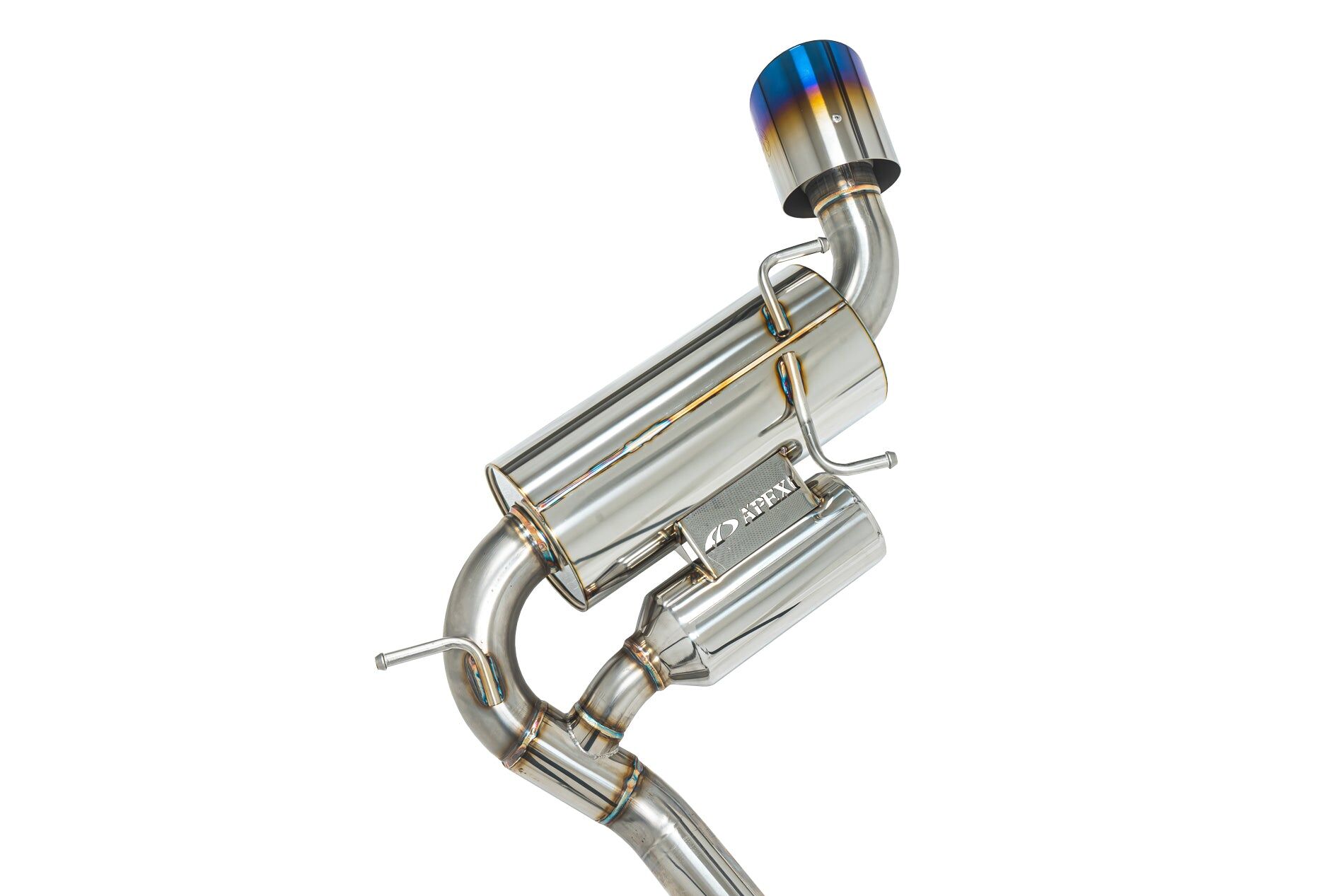

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains.
- Matched and manufactured for select chassis.
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results.

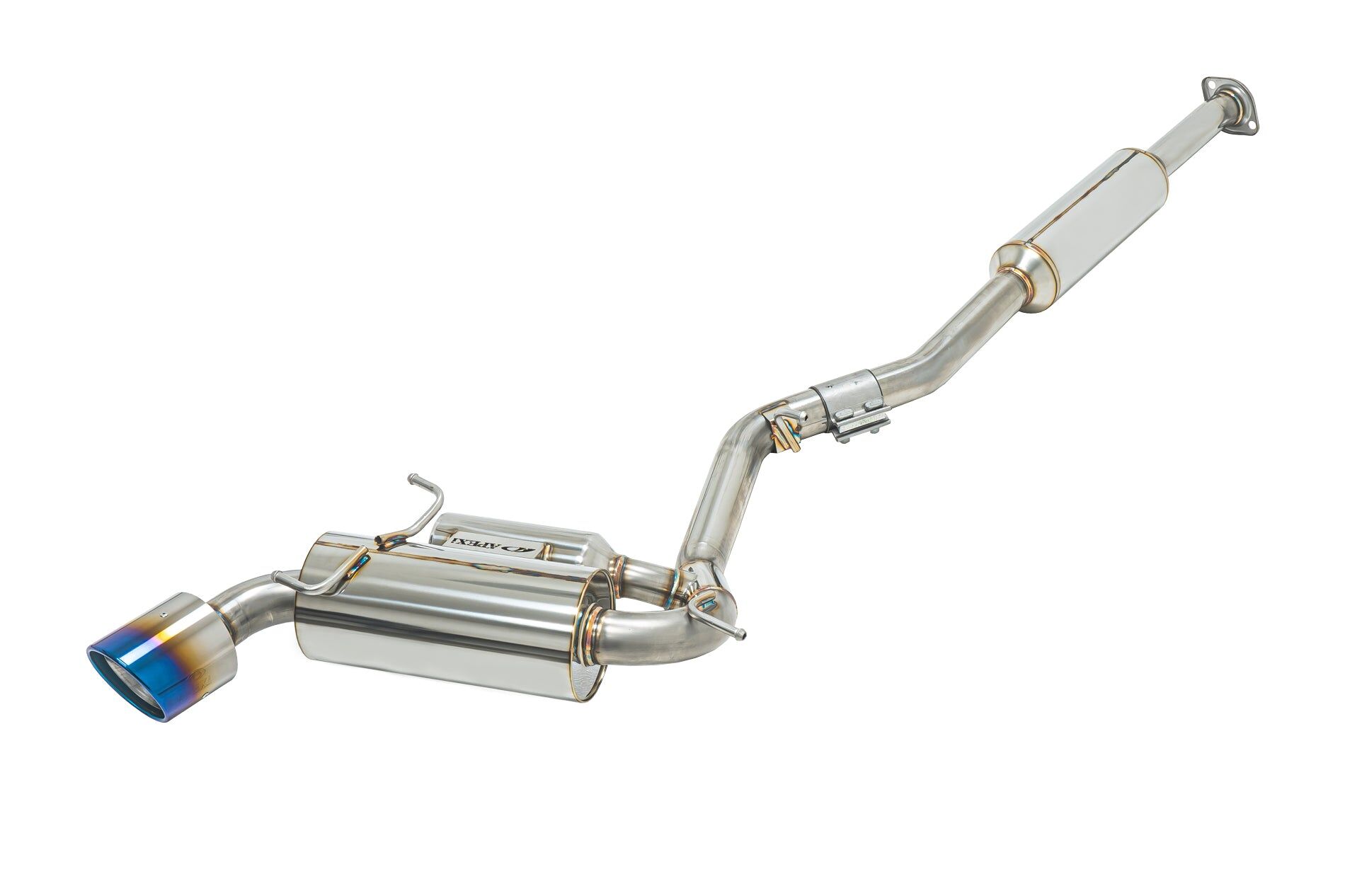

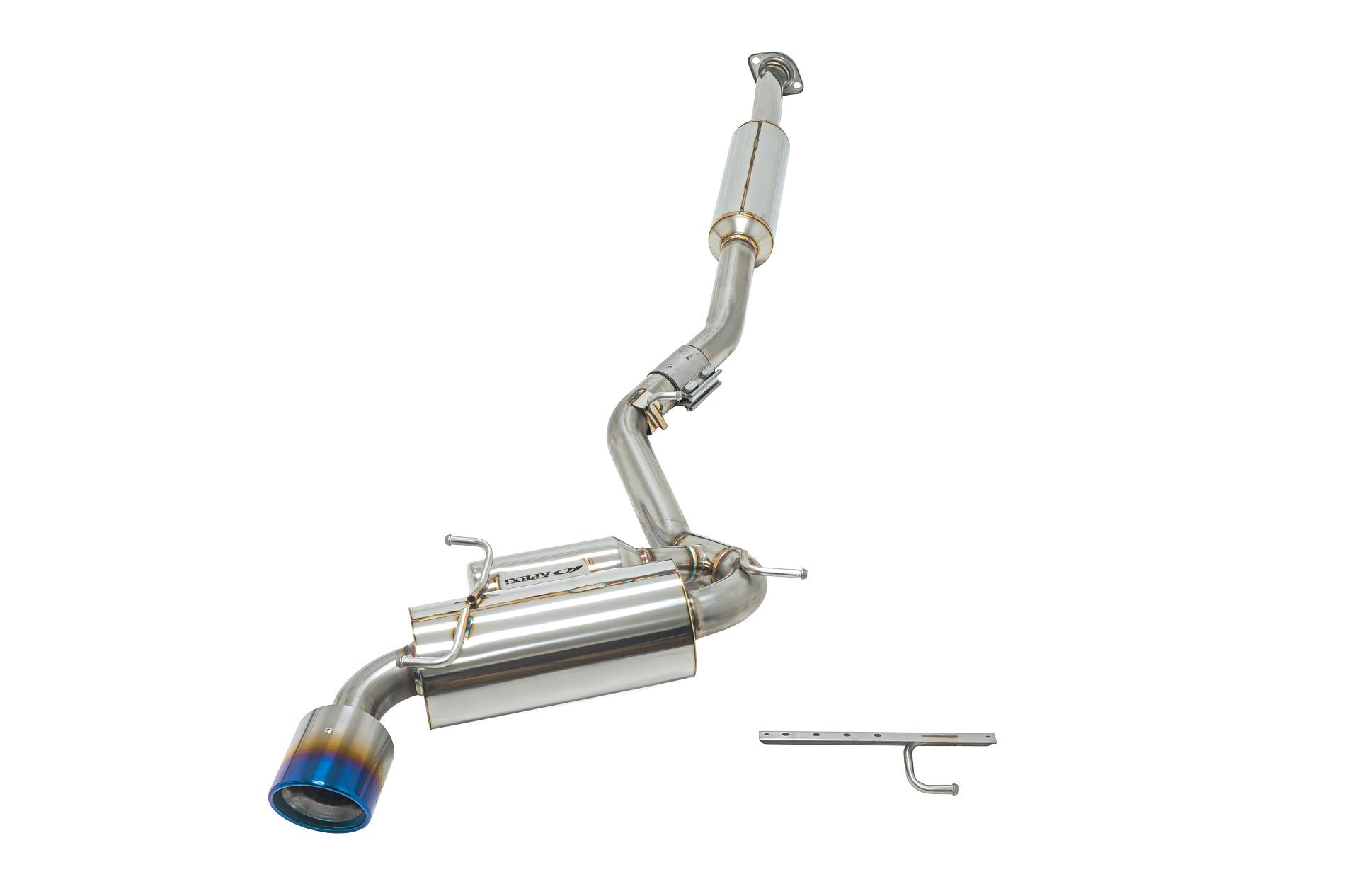

APEXi N1 Evolution-X Exhaust, Scion FR-S / Toyota 86 / Toyota GR86 2013+, with Titanium Tip (Single)
Pipe : 60mm-65mm, Tip : 123mm
Installation Notes:
Professional installation is required.
Specifications:
| Bolt-On | Yes |
|---|---|
| Part Number | 164-T010J |
| Year | 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
| Make | Toyota, Scion, Subaru |
| Model | FRS, 86, GR86, BRZ |
| Body Style | 2-Door Coupe |
| Engine |
- 2.4 L FA24D H4 - 2.0L FA20 H4 |
| Chassis | ZN6, ZC6, ZN8, ZD8 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60mm to 65mm |
| Tip Diameter | 123mm |
| Pieces | 2 |

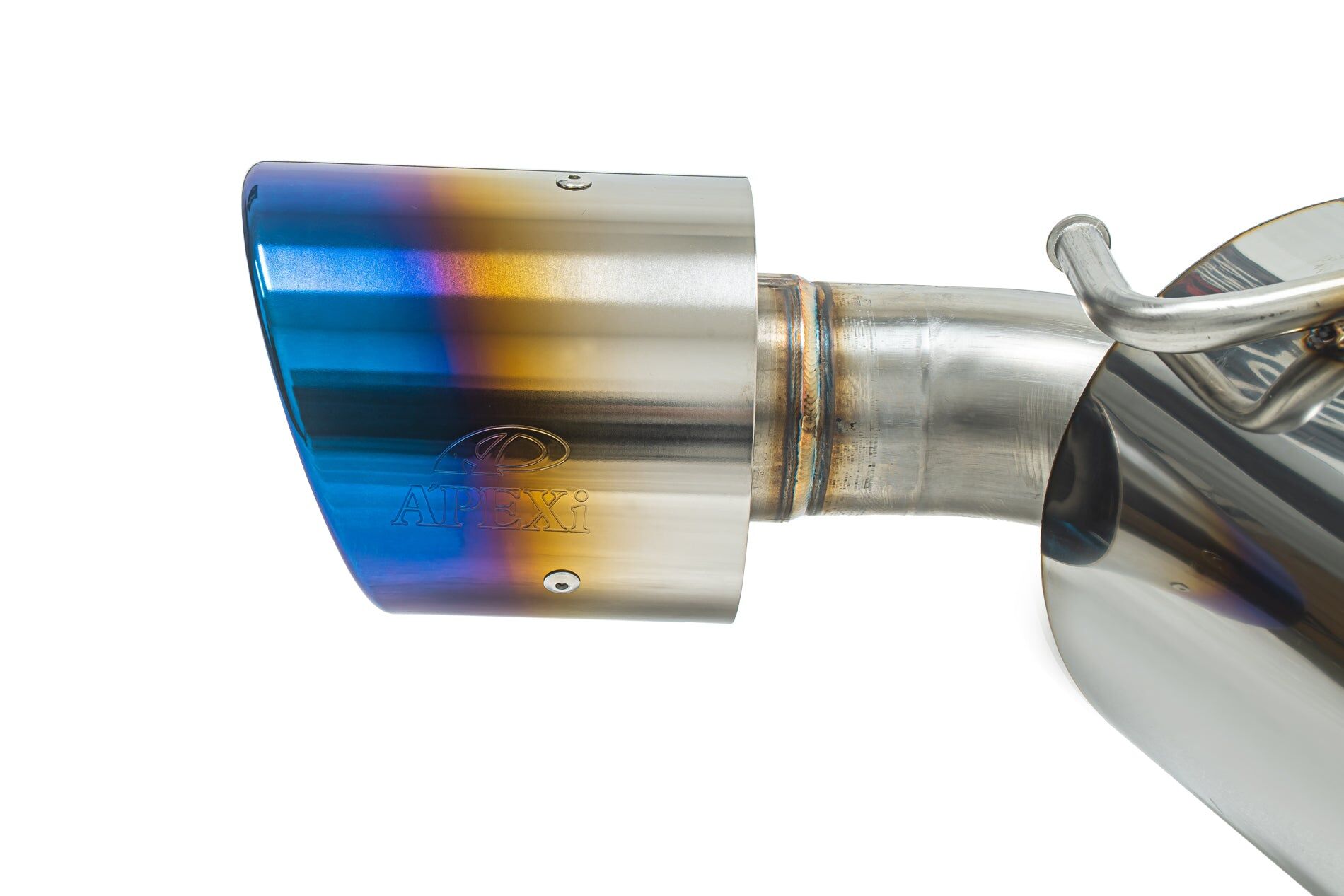

| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | TP270 Titanium |
| System Weight | 26.00 lbs. |
| Special Notes | Package Dimension: 56"x12"x21", Package Weight: 38 lbs. |
![]() |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
Fitment & Application:
- 2024 Toyota GR86
- 2024 Toyota 86
- 2024 Scion FR-S
- 2023 Toyota GR86
- 2023 Toyota 86
- 2023 Scion FR-S
- 2022 Toyota GR86
- 2022 Toyota 86
- 2022 Scion FR-S
- 2021 Toyota GR86
- 2021 Toyota 86
- 2021 Scion FR-S
- 2020 Toyota GR86
- 2020 Toyota 86
- 2020 Scion FR-S
- 2019 Toyota GR86
- 2019 Toyota 86
- 2019 Scion FR-S
- 2018 Toyota GR86
- 2018 Toyota 86
- 2018 Scion FR-S
- 2017 Toyota GR86
- 2017 Toyota 86
- 2017 Scion FR-S
- 2016 Toyota GR86
- 2016 Toyota 86
- 2016 Scion FR-S
- 2015 Toyota GR86
- 2015 Toyota 86
- 2015 Scion FR-S
- 2014 Toyota GR86
- 2014 Toyota 86
- 2014 Scion FR-S
- 2013 Toyota GR86
- 2013 Toyota 86
- 2013 Scion FR-S
| Brand | Apexi Performance |
|---|---|
| Part Number | APX-164-T010J |
| Shipping Method | UPS/FedEx/USPS Ground |
| California Prop 65 Warning |
|










This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or reproductive harm. For more information, visit https://www.p65warnings.ca.gov/
