2018-2023 Kia Stinger 3.3L Competition Intercooler Only by Wagner Tuning

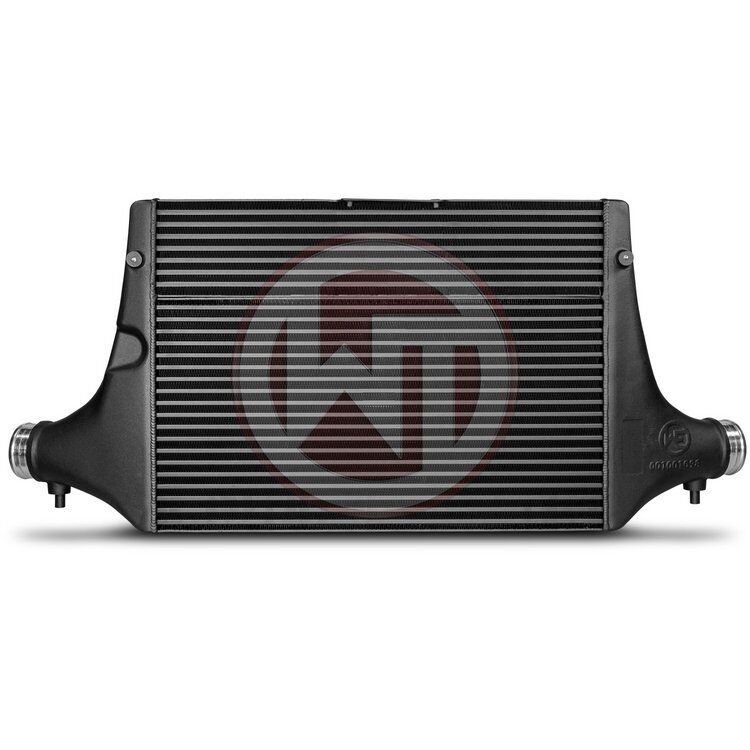

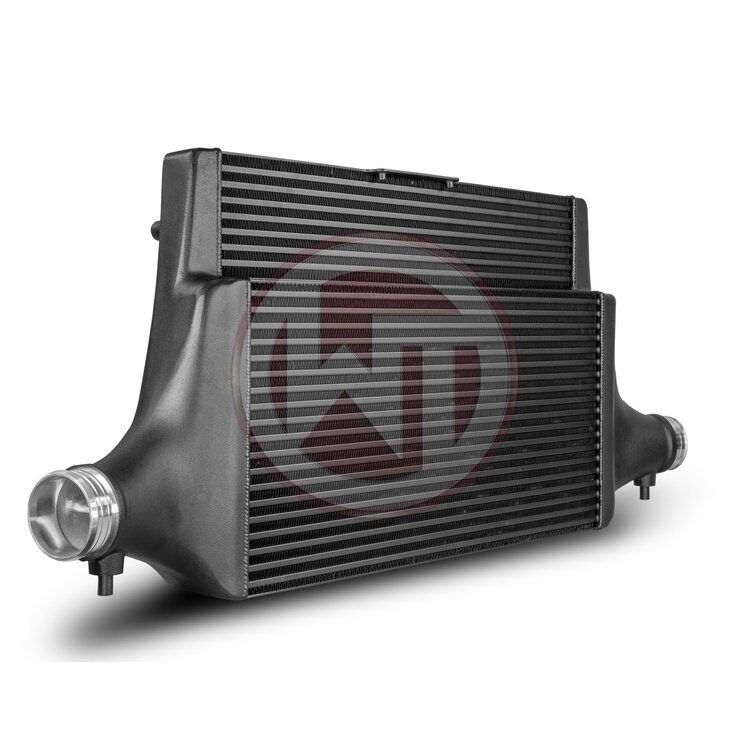

Competition Intercooler Kit Kia Stinger GT 3.3T-Gdi AWD RWD (US-model). The Wagner Tuning high-performance intercooler has got a new competition core (Tube Fin) With the dimensions 600 mm x 445(315) mm x 105(60) mm / 23,6 Inch x 17,5(12,4)Inch x 4,1(2,4)Inch (stepped design), which was developed especially for the requirements of the Kia Stinger GT.

This high-performance core offers an 175 Percent larger frontal surface and 183 Percent more core volume compared to the stock intercooler.

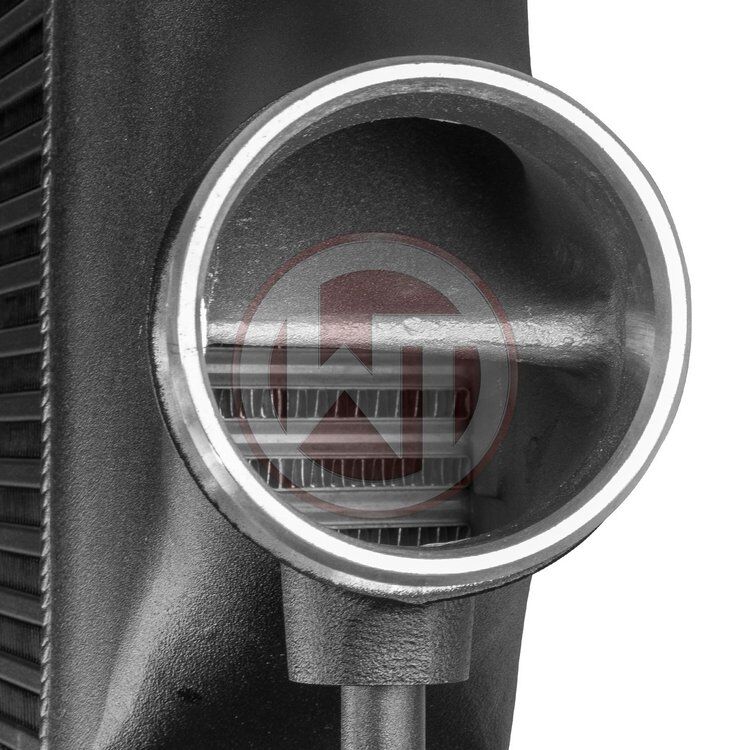

The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure.

The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That's why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the Wagner Tuning intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

• Inlet diameter: 76 mm/3 Inch; Outlet diameter 76 mm/3 Inch

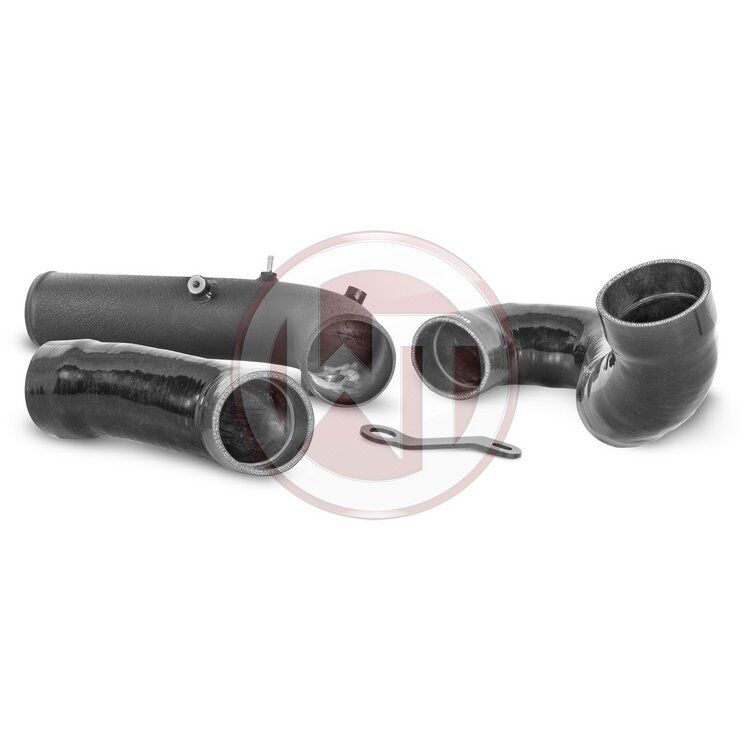

• This intercooler kit is optionally available with 76mm(3 Inch) charge pipe!

Core dimensions stock intercooler:

• V = 8,75 L / 534 Inch
• A = 972 cm / 15066 Inch

Core dimensions Wagner Tuning intercooler:

• V = 24,8 L / 1513,4 Inch
• A = 2670 mm/ 41385 Inch
• Part number 200001142USA.KiTSingle

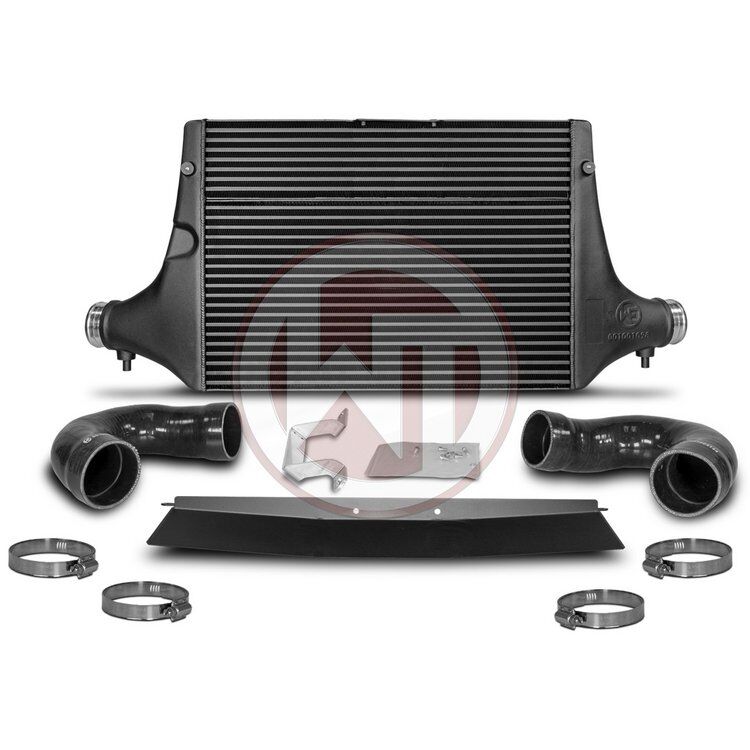

Kit Comes With:

• 1 intercooler
• 1 air baffle
• 1 1/2 3 Inch charge pipe (optinal)
• 2 silicone hoses (Black)
• 1 mounting material
• 1 installation instruction
