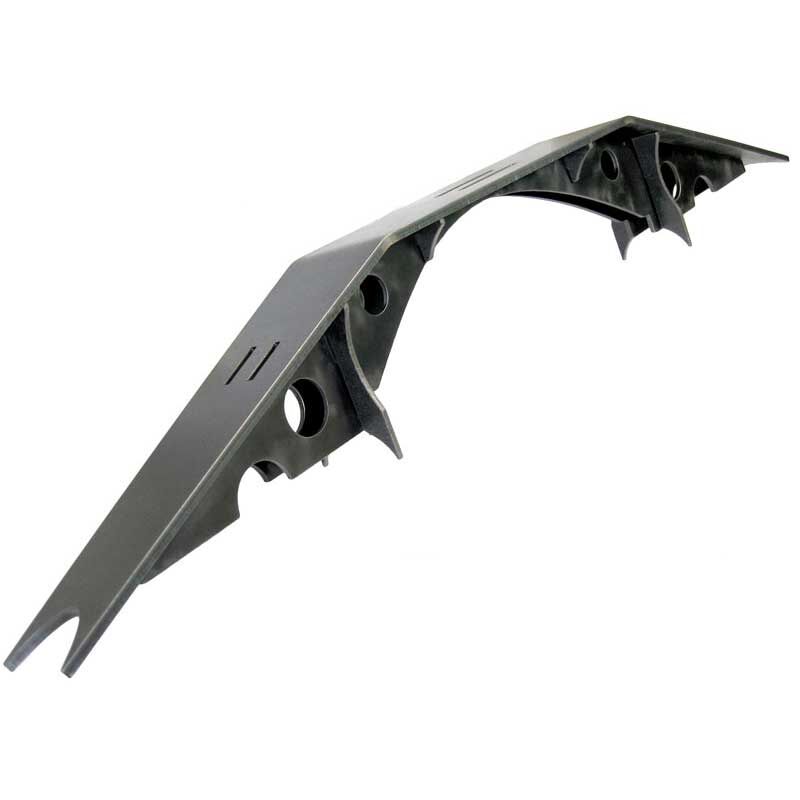

AAM 11.5 Rear Truss 3.5 Inch Tube by Artec Industries
SKU
271345
$399.99
Free Shipping
(within lower 48 states)
Artec Industries is a U.S.-based performance and off-road gear manufacturer that specializes in rugged, precision-engineered components for trucks, SUVs and recreational off-road vehicles. From their base in North Salt Lake, Utah, the company designs and produces a broad range of products. Known for combining innovation with craftsmanship, Artec's offerings are built with an emphasis on structural integrity, fit, and durability. Their "In Artec We Truss" reputation reflects both the technical strength of their builds and their standing among off-road communities.
Artec Industries' AAM 11.5 Rear Axle Truss is built to handle serious abuse and reinforce the entire axle, while offering a flat surface for upper link mounting. The 3/8 inch thick truss top and 1/4 inch thick gussets feature a unique design to fortify both the axle and the link mounting surface. With the ability to select pinion angles from 7 to 20 degrees, trimming may be required for more or less. This truss is compatible with AAM 11.5 axles with a centered differential and a total length of about 53 inches.
Features:
- 3/8 inch thick mild steel truss top and 1/4 inch mild steel gussets
- Precision CNC cut and bent for great fitment
- Low profile design allows for ideal link joint geometry (9 inches from axle centerline)
- Truss spans entire length of axle for complete reinforcement of axle tubes
- Interlocked 1/4 thick gussets for maximum strength and easy assembly
- Sleek design makes for easier fitting and less interference with vehicle components
Installation Notes:
Professional installation is recommended.
Specifications:
Differential: AAM 11.5.
Finish: Bare.
Size: 3.5 Inch.
Sold As: Each.
Bolt Hole Location: Rear.
Universal: No.
Material: Steel.
Fitment & Application:
| Brand | Artec Industries |
|---|---|
| Part Number | ART-TR1101 |
| Shipping Method | UPS/FedEx/USPS Ground |
