Build-It RAM 6.7L Cummins 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68 by BD Diesel - 1062025 Build-It RAM 6.7L Cummins 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68 by BD Diesel
Build-It RAM 6.7L Cummins 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68 by BD Diesel - 1062025

Build-It RAM 6.7L Cummins 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68 by BD Diesel

SKU
268637
Special Price $1,485.95 was $1,561.00
Free Shipping (within lower 48 states)
-
+

BD Diesel USA is a performance-oriented company specializing in high-quality diesel and heavy-duty truck components and upgrades. Their products are engineered to handle high pressure, high temperature, high load, and extended operation, not just occasional use. With years in the field (including intensive hours of idling, towing, and heavy usage), the BD Diesel's engineering and R&D is informed by real use cases.

Are you a looking to rebuild your own Tranmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance Tranmissions for the seasoned builder to complete the job.

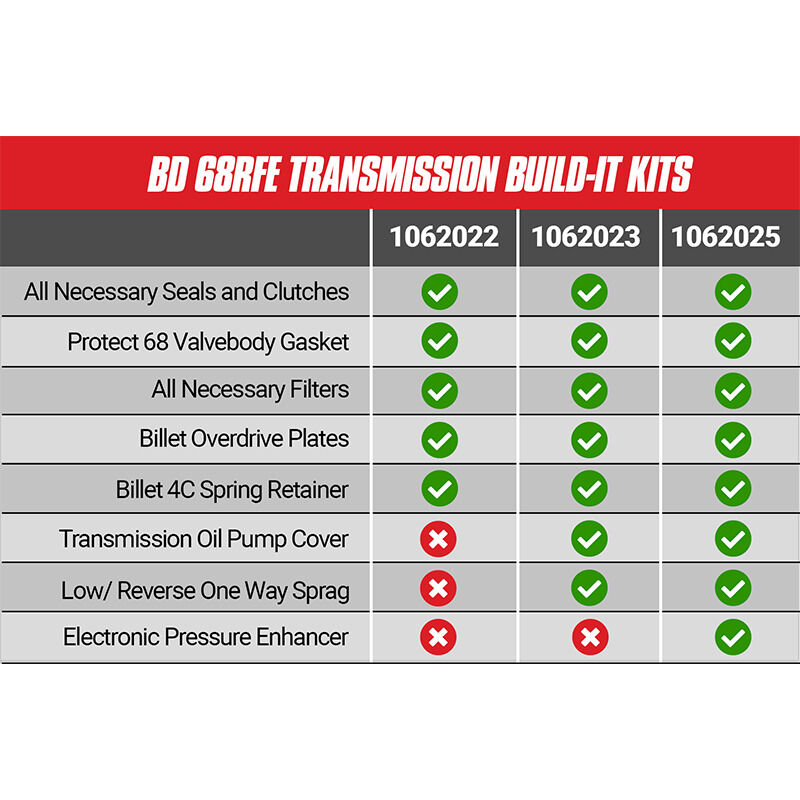

All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own Tranmission rebuilds.

Warranty:

Parts

  • 12-Months
  • 12,000 Miles

Note:
Recommend Option - BD Heavy Duty Tranmission Pan

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

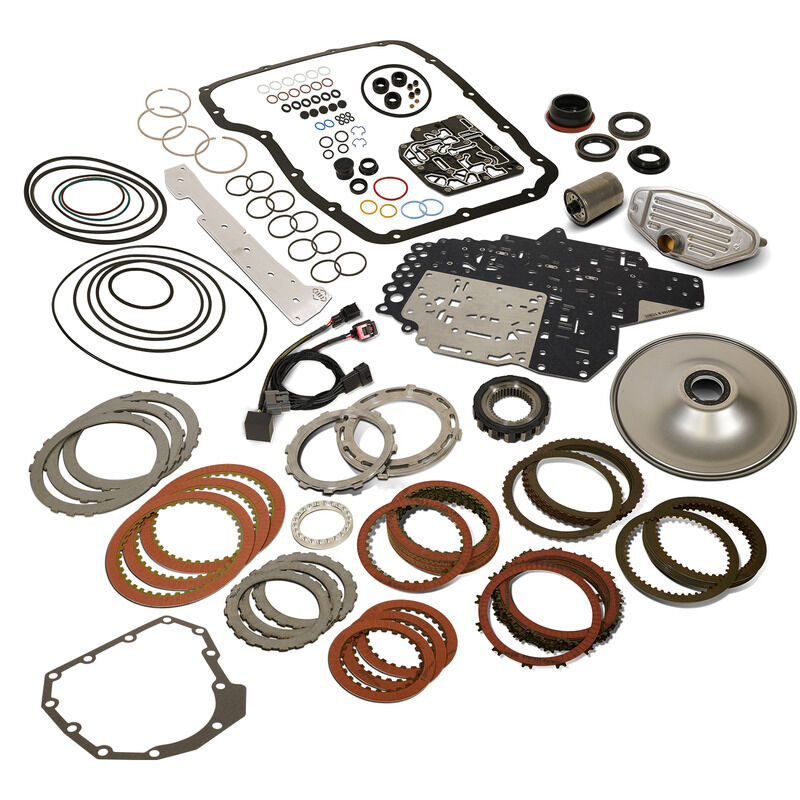

Features:

  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • Heavy duty accumulator plate to prevent accumulator blowout
  • Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
  • Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Upgraded One Way Clutch/Sprag
  • Over Drive clutches 17 percent increase and Under Drive clutches 20 percent increase
  • Qty 2: Check Balls 1/4in
  • Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
  • Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
  • Qty 15: OD Clutch Friction, OD Clutch Steel
  • Filter - Pan, Spin On
  • Pump Cover
  • Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
  • Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
  • Billet 4C Spring Retaining Ring
  • Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
  • Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
  • Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
  • O-Ring - pump Cover

Installation Notes:

Professional installation is required.

Specifications:

Series: Build It.

EMS Code: 4.

Transmission Model: 68RFE.

Warranty: 12-Months/12,000 Miles.

Fitment & Application:

More Information
Brand BD Diesel
Part Number BDD-1062025
Shipping Method UPS/FedEx/USPS Ground
