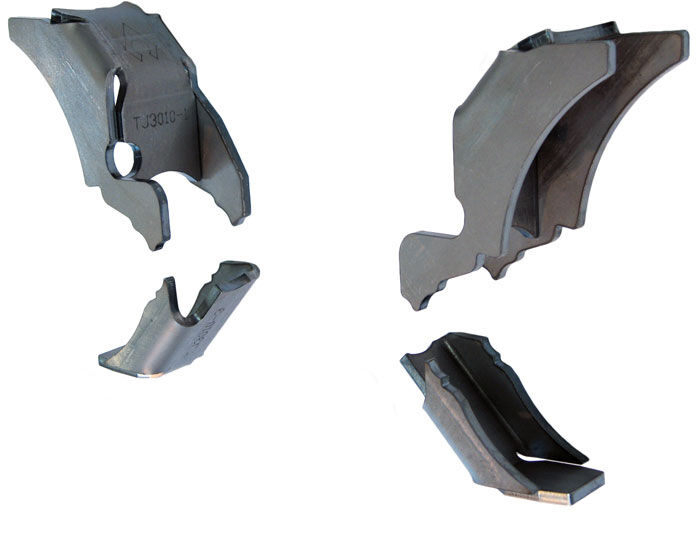

Dana 30 Inner C Gussets by Artec Industries

These heavy duty gussets are designed to take serious abuse and reinforce your front 30 or Rubicon 44 Inner C's. The 1/4 inch thick precision cut and formed components of this setup out perform the competition.

Details:

• Sold as Each
• Install Note:It It Recommended To remove The Upper Ball Joint Prior To Welding These Inner C Gussets.
• Features include:
• 1/4 inch mild steel.
• Precision CNC cut and bent For great fitment.
• Laser etched part numbers For easy installation

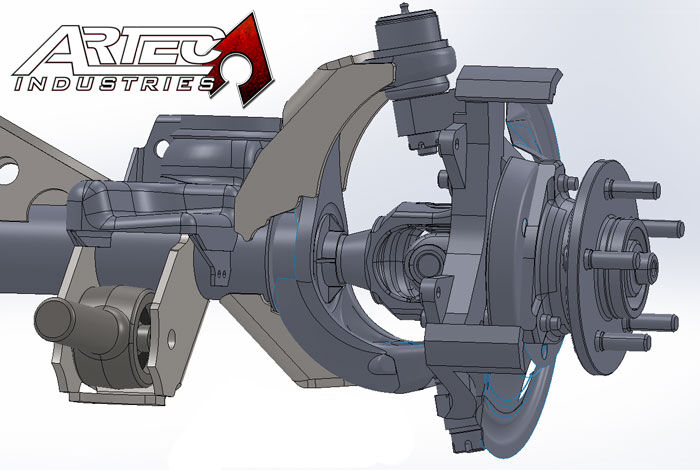

• Designed using CAD files directly from Chrysler For a precision fit Inch tight area around inner C.
• Provides valuable reinforcement to an area prone to abuse and flex.
• Clearanced For stock and aftermarket coil springs
• Boxed structure offers more rigidity over single plate Style gusset

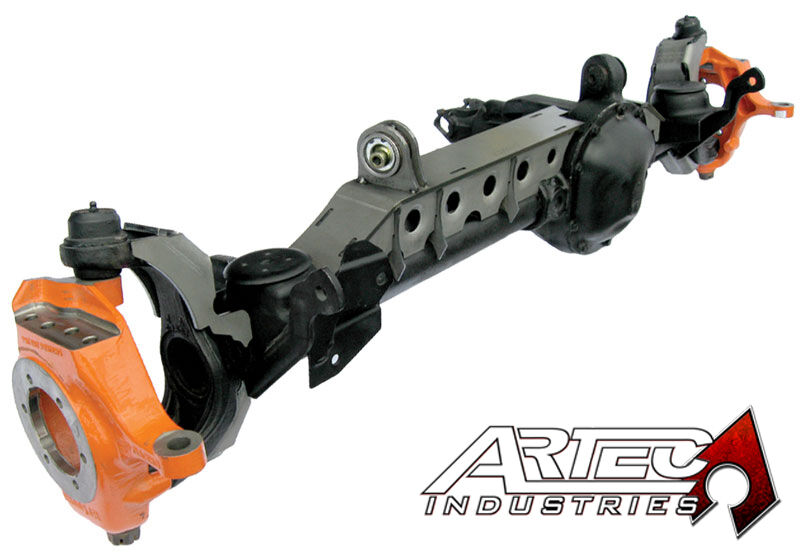

• Gussets both top and bottom of Inner C For a complete solution.
• Some grinding and fitment may be required when installing this Kit.
• Every axle varies slightly and some fabrication may be required.
• Clearancing on the top gussets around the coil spring may be necessary depending on coil spring thickness.
• This Kit requires general welding and fabrication skills.
• Welding should only be done by a competent welder.
• Artec Industries implies no guarantees or warranties and is not liable For improper installation.
