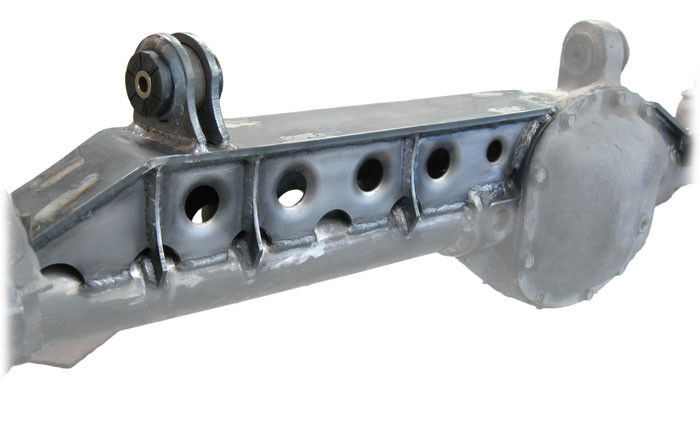

Front Axle Truss For XJ W/Currie Joints by Artec Industries

This heavy duty and light weight truss system is designed to take serious abuse and reinforce your front High Pinion 30 XJ axle. The 1/4 inch thick truss top and 10 ga. gusseting incorporates a unique design to strengthen both axle tubes, not just the long tube. The precision cut and formed components of this setup ensure a hassle-free installation. Not only is this just a truss, but you also get a Complete Polyurethane Bushing Replacement For your upper control arms, or you can even upgrade to Currie Johnny Joints.
Features include:

• Sold as Each
• Upper Control Arm Options: Currie Johnny Joints
• 1/4 inch and 10 gauge (.130 inch) mild steel.
• Precision CNC cut and bent For great fitment.
• Truss is low profile to allow clearance above the axle.
• Truss spans length of long side and short side.
• Truss is reinforced using interlocked 10 gauge thick gussets For maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
• This Kit requires general welding and fabrication skills including welding to the cast center section. Welding should only be done by a competent welder.
• Artec Industries implies no guarantees or warranties and is not liable For improper installation.
• Some grinding and fitment may be required when installing this Kit. Every axle varies slightly and some fabrication may be required.
• In rare and extreme cases, the truss may come into contact with oil pan.
• Prior to operating the vehicle, remove the coil springs, cycle the suspension including full compression of both sides simultaneously and add bump stop extensions to prevent damage to oil pan.
