Polaris Dagor Headlight Kit by Baja Designs
SKU
269707
$1,574.95
Free Shipping
(within lower 48 states)
Baja Designs is an industry-leading innovator in off-road and performance lighting, widely known as "The Scientists of Lighting." Baja Designs’ offerings span automotive, motorcycle, UTV/ATV, marine, industrial, and even government/military lighting solutions. Their portfolio includes vehicle-specific lighting kits, light bars, DOT-legal headlights (such as the DOT LP6), rear chase lights (the RTL series), and full power distribution systems via sPOD integration.

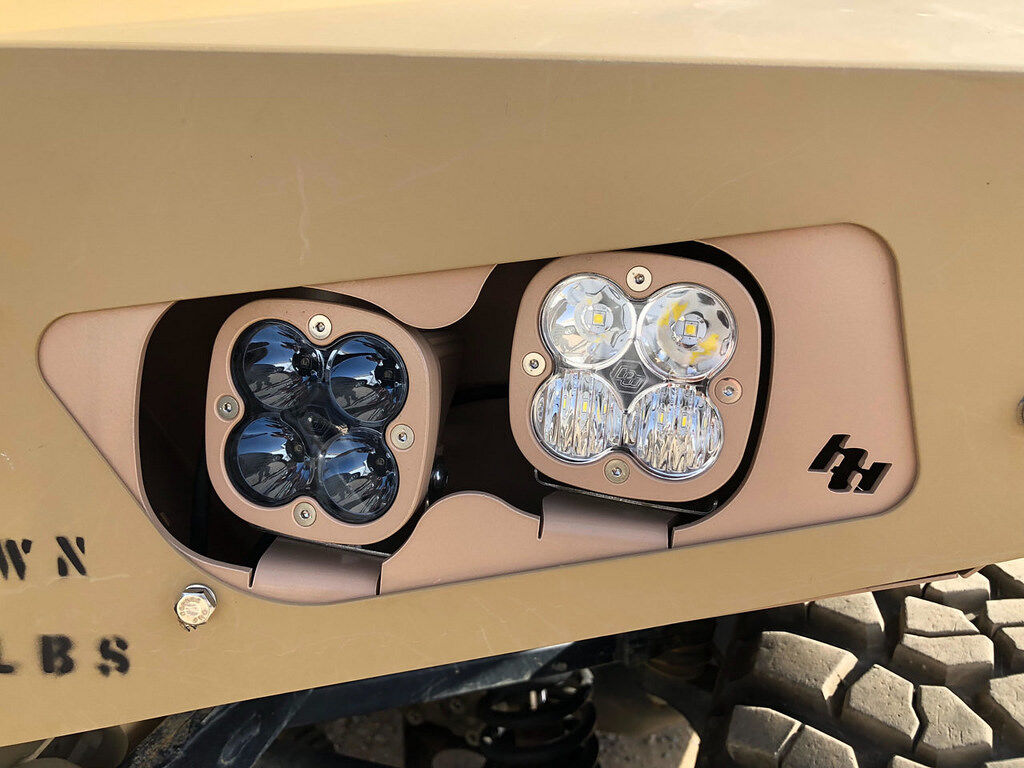

Our Polaris Dagor Headlight Kit is powder coated to match and face the elements just as the Dagor would. We've had our BD engineers put in the hours doing severe testing on both the mounts, and lights to ensure that you've always got I.R. light when you need.
Go secretly into the night and see without being seen with our Squadron Pro IR LED Lights and plug directly into the factory harness retaining the factory Hi/Low function. This kit covers all the bases, making for easy assembly, cleaning, and servicing.
Squadron 940nm Specifications:
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
Specifications (Per Light):
- LED: 4 Osram 940nm LEDs
- mW: 3960mW
- mW/sr: 1700mW/sr
- Weight: 12 ounces
- Wattage/Amps/Volts: 11W, .80A at 13.80Vdc, .40A at 27.6Vdc
- Dimensions: 3.07 inch x 2.76 inch x 3.07 inch
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Spec Testing)
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Squadron Pro Specifications:
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive- Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 4,900 Utilizing 4 Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

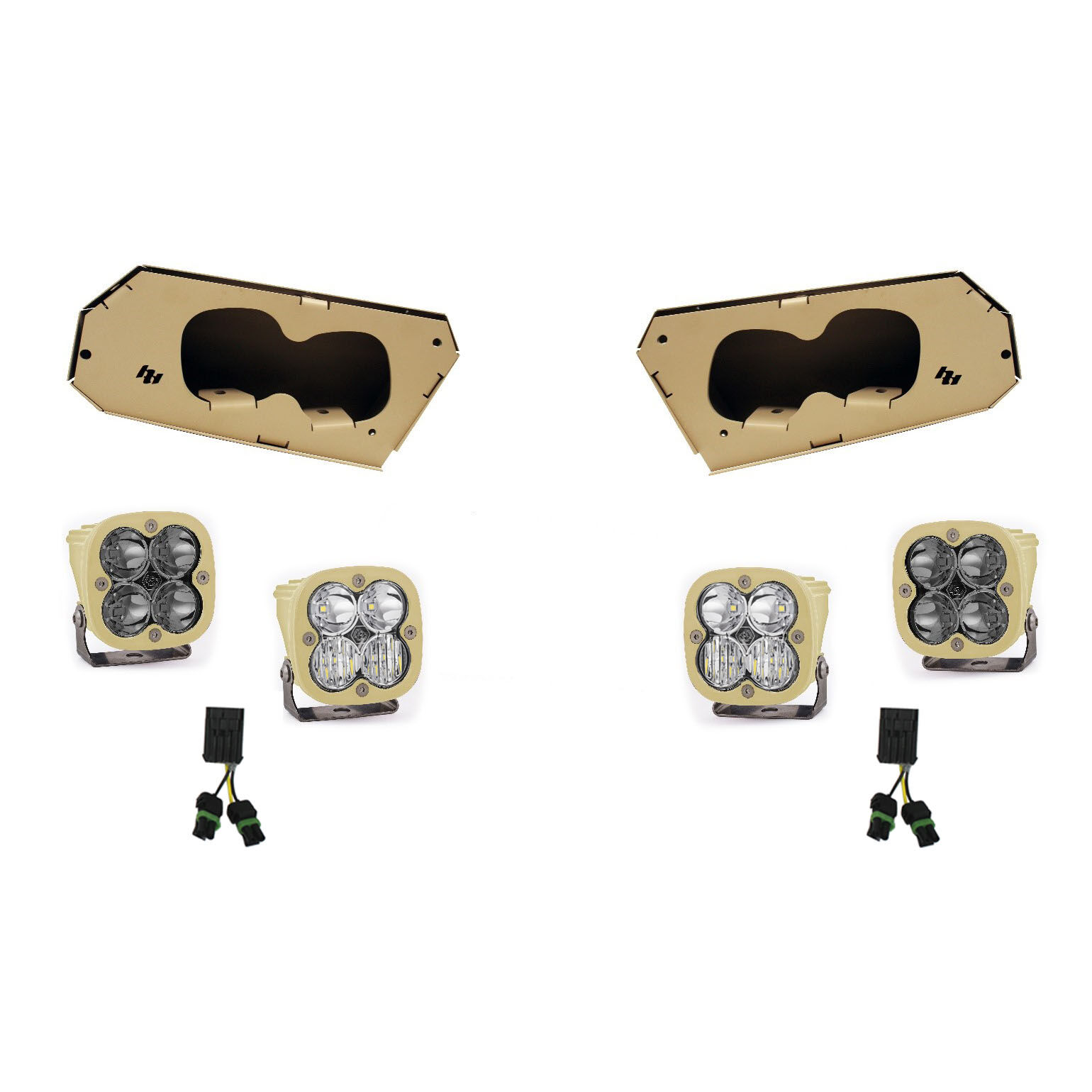

Includes:
- Headlight Buckets
- Hi-Low Plug and Play Harness
- x2 Squadron Pro
- x2 Squadron 940nm
Installation Notes:
Professional installation is recommended.
Specifications:
Universal: No.
Sold As: Kit.
Series: Squadron Series.
Housing Type: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize.
Life Expectancy: 49,930 Hours.
Lens Material: Hard Coated Polycarbonate.
IK10 Compliant: IK10 Compliant (Mechanical Impact Testing).
Material: Aircraft Grade Aluminum.
Finish: Hard Anodized.
Brackets Included: Yes.
Waterproof Rating: IP69K (Waterproof up to 9ft Pressure Washable).
Bezel Material: Billet Machined Aluminum.
Bracket Material: Stainless Steel.
