BD Diesel USA is a performance-oriented company specializing in high-quality diesel and heavy-duty truck components and upgrades. Their products are engineered to handle high pressure, high temperature, high load, and extended operation, not just occasional use. With years in the field (including intensive hours of idling, towing, and heavy usage), the BD Diesel's engineering and R&D is informed by real use cases.

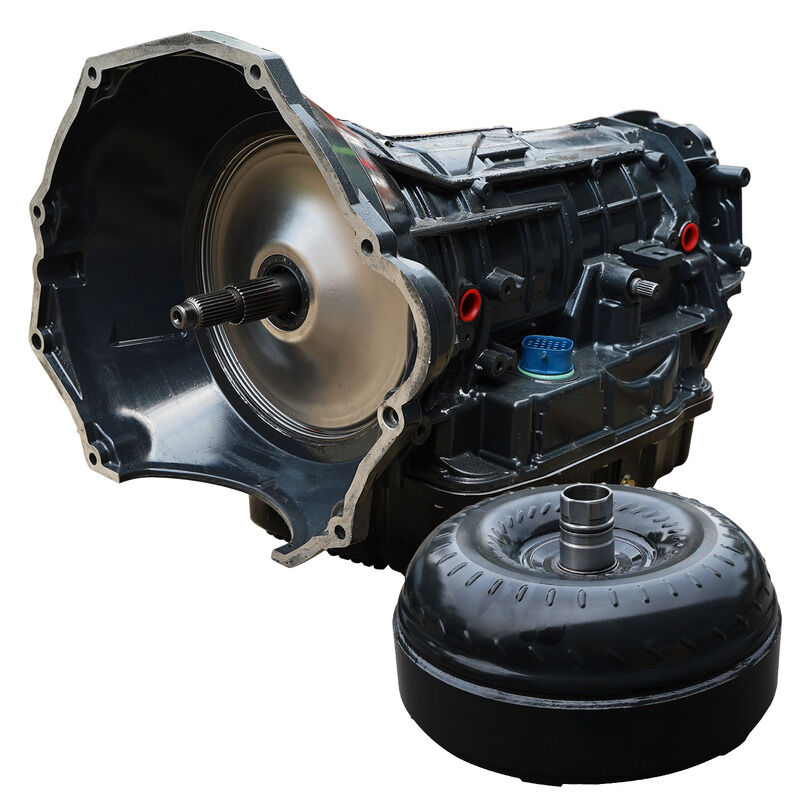

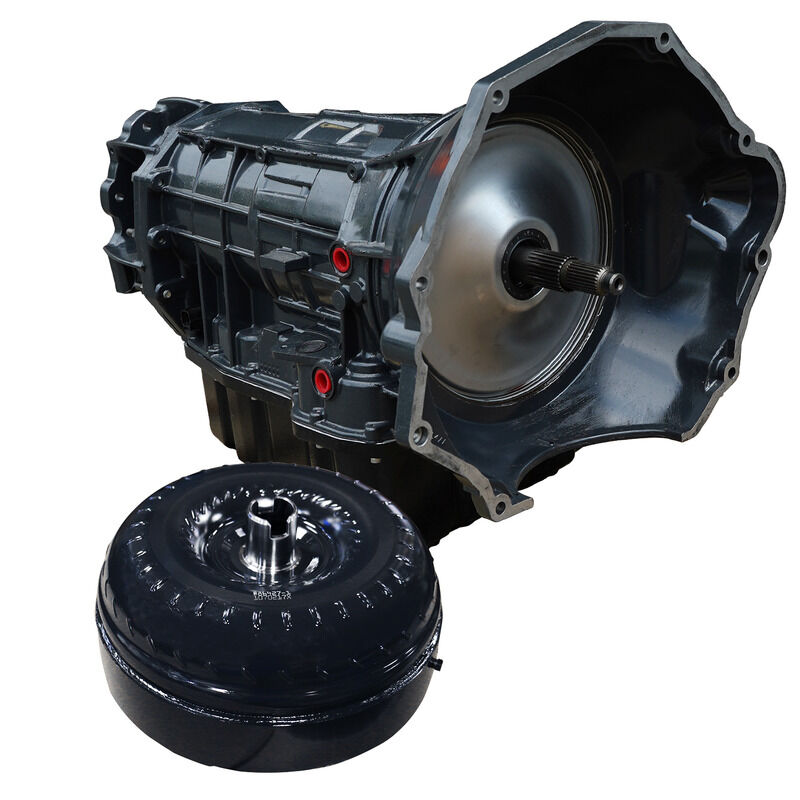

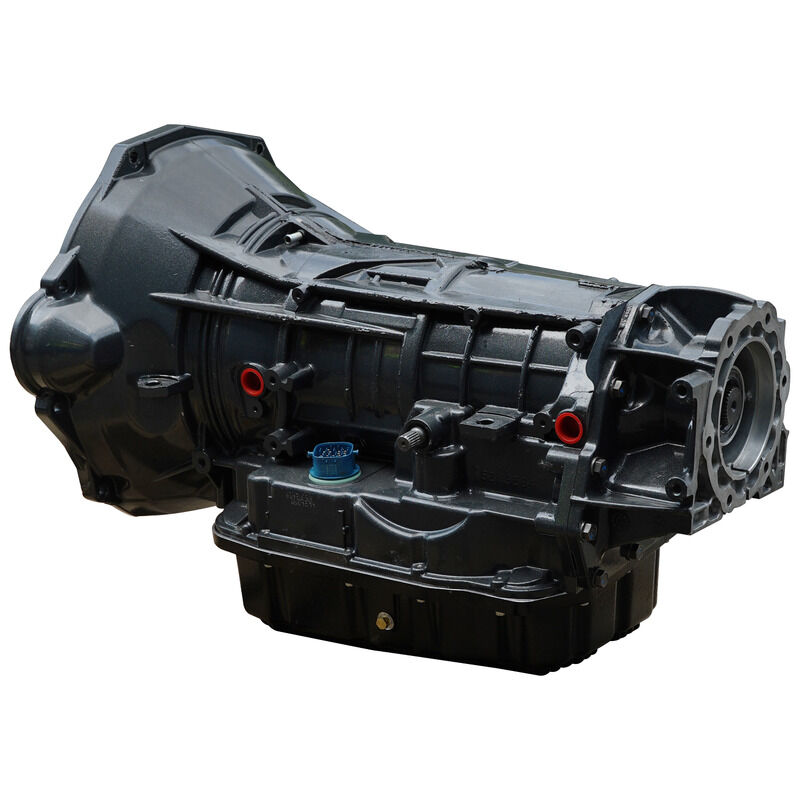

BD 68RFE Tranmission, featuring protect68 kit already installed! Upgraded valve body with BD gasketed separator plate solves common cross leak issues that lead to clutch failure. The deep sump aluminum pan increases fluid capacity and cooling.
Perfect Tranmission for stock or mildly tuned trucks with stock or stock-plus Injectors! Includes a ProForce billet Torque Converter. Every ProForce 68RFE converter
Features:
an upgraded forged billet cover and upgraded stator for lower rpm response!
Install Time:
- 9 Hours
Warranty:
Parts
24-Months
Labor
12-Months
Emissions:
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)
Features:
- Tranmission
- BD ProTech68 Valve body with custom bonded gasket separator plate
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep Sump Oil Pan
- Stock Tranmission clutch counts
- Billet 4C Spring Retainer
- Special tuning required for 2019-up applications for increased line pressure. Line Pressure Controller not included.

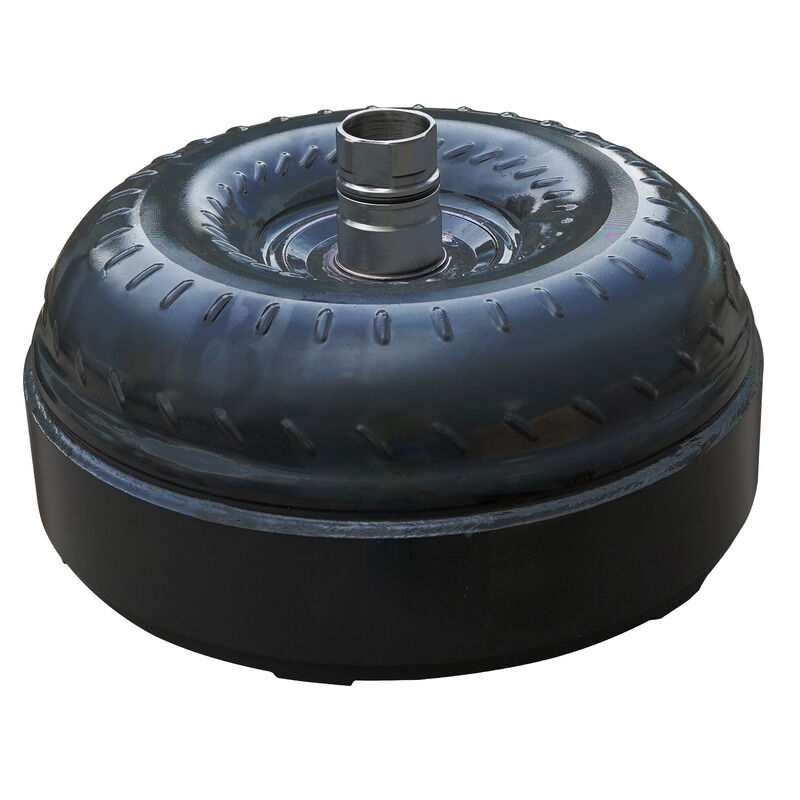

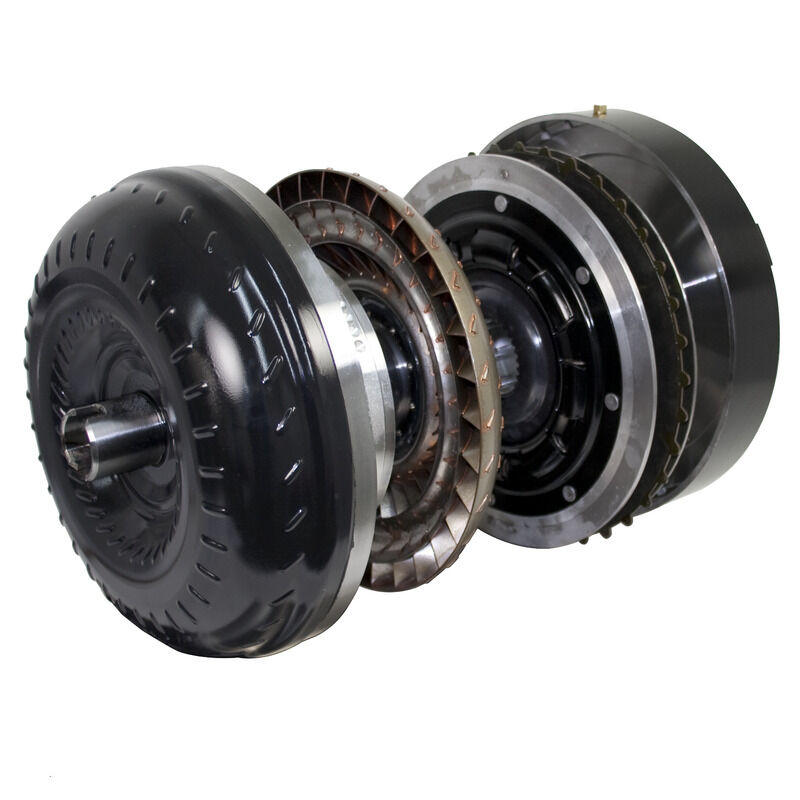

- PROFORCE Torque Converter
- Good for 550 flywheel HP
- High performance Enhanced stall stator
- Great for street and towing applications
- Lower rpm response than the stock converter
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Damper springs replaced
- 11.625 inch dual-clutch
- Billet forged front cover with thicker walls and stronger mounting pads
Installation Notes:
Professional installation is required.

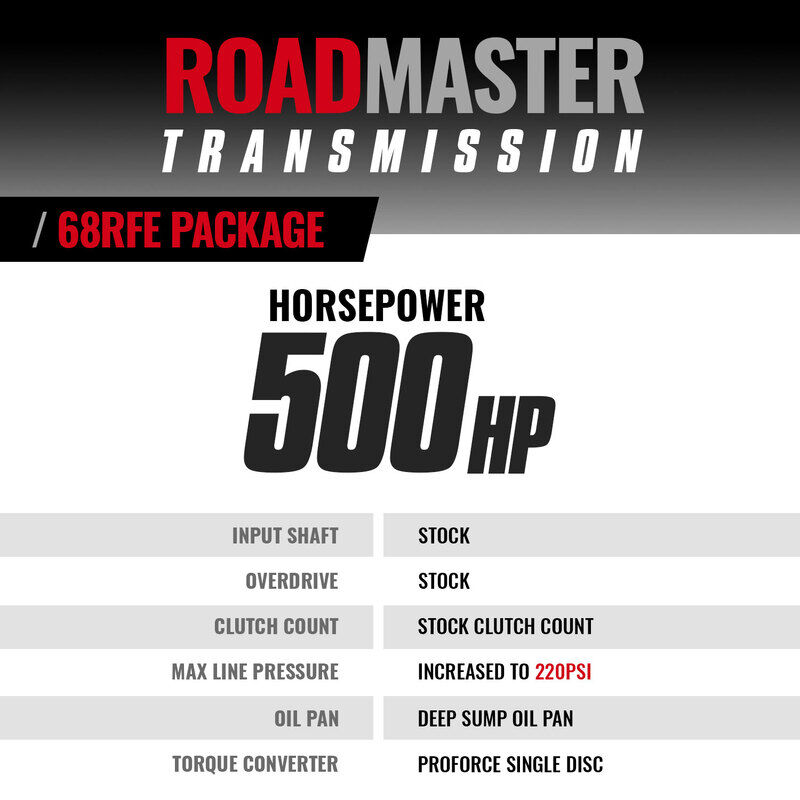

Specifications:
Core Charge: $2500.
Series: Roadmaster.
EMS Code: 4.
Drive: 2WD.
Installation Time: 9 Hours.
Transmission Model: 68RFE.
Warranty: 24-Months.
Fitment & Application:
- 2022 Ram 3500 LTD Longhorn
- 2022 Ram 3500 Big Horn/Laramie/Lone Star/LTD/SLT/Tradesman
- 2022 Ram 2500 LTD Longhorn
- 2022 Ram 2500 Big Horn/Laramie/Lone Star/LTD/Power Wagon/Tradesman
- 2021 Ram 3500 LTD Longhorn
- 2021 Ram 3500 Big Horn/Laramie/Lone Star/LTD/SLT/Tradesman
- 2021 Ram 2500 Laramie Longhorn
- 2021 Ram 2500 LTD Longhorn
- 2021 Ram 2500 Big Horn/Laramie/Lone Star/LTD/Power Wagon/Tradesman
- 2020 Ram 3500 Laramie Longhorn
- 2020 Ram 3500 Big Horn/Laramie/Lone Star/LTD/SLT/Tradesman
- 2020 Ram 2500 Laramie Longhorn
- 2020 Ram 2500 Big Horn/Laramie/Lone Star/LTD/Power Wagon/Tradesman
- 2019 Ram 3500 Laramie Longhorn
- 2019 Ram 3500 Big Horn/Laramie/Lone Star/LTD/SLT/Tradesman
- 2019 Ram 2500 Laramie Longhorn
- 2019 Ram 2500 Big Horn/Laramie/Lone Star/LTD/Power Wagon/Tradesman
| Brand | BD Diesel |
|---|---|
| Part Number | BDD-1064302SS |
| Shipping Method | Truck Freight/LTL |
