Apexi offers high quality products at completitive prices. Manufactured using cutting-edge technology and vigorous testing, Apexi performance products are what most enthusiasts and racers demand. Most Apexi performance proucts are made in Japan.
The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.

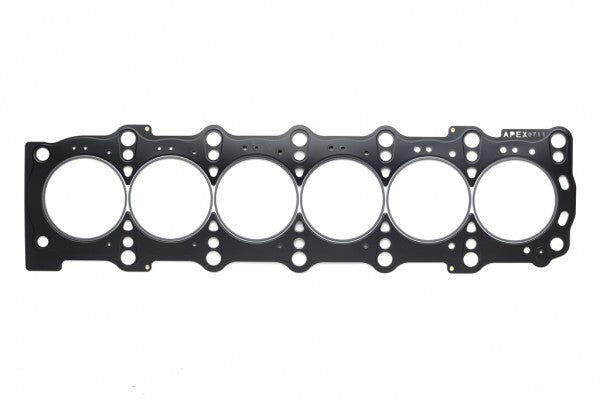

APEXi Engine Metal Head Gasket 1JZ-GTE (JZX90, JZX100, JZX110), 87mm T=1.8
Professional installation is required.
| Bolt-On | Yes |
|---|---|
| Part Number |
814-T001 : T=1.1 814-T002 : T=1.5 814-T003 : T=1.8 814-T004 : T=2.1 |
| Engine | 1JZ-GTE |
| Chassis | JZX90, JZX100, JZX110 |
| Gasket Type | Stopper Type |
| Gasket Bore | 87mm |
| Engine Bore Size (mm) | 86mm (factory) |
| Gasket Thickness (mm) |
T=1.1mm T=1.5mm T=1.8mm T=2.1mm |
| Compression (Factory Head Gasket) | 8.5- (JZX90), 9.0- (JZX100/110) |
| Compression (A'PEXi Head Gasket) |
814-T001 : 8.9- (JZX90), 9.4- (JZX100/110) 814-T002 : 8.5- (JZX90), 9.0- (JZX100/110) 814-T003 : 8.3- (JZX90), 8.7- (JZX100/110) 814-T004 ; 8.1- (JZX90), 8.5- (JZX100/110) |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
| Brand | Apexi Performance |
|---|---|
| Part Number | APX-814-T003 |
| Shipping Method | UPS/FedEx/USPS Ground |
| California Prop 65 Warning |
|
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or reproductive harm. For more information, visit https://www.p65warnings.ca.gov/
