The Baja Designs OnX6+ 30-inch lower grille light bar kit is the ultimate lighting for the 2014-2021 Toyota Tundra. This comprehensive kit comes with our 30-inch Onx6+ light bar in clear driving combo configuration that offers a hi/lo mode, with 31,910 raw lumens in hi mode, and 25,450 in low mode to illuminate zones 1, 2, and 3 in front of your vehicle.

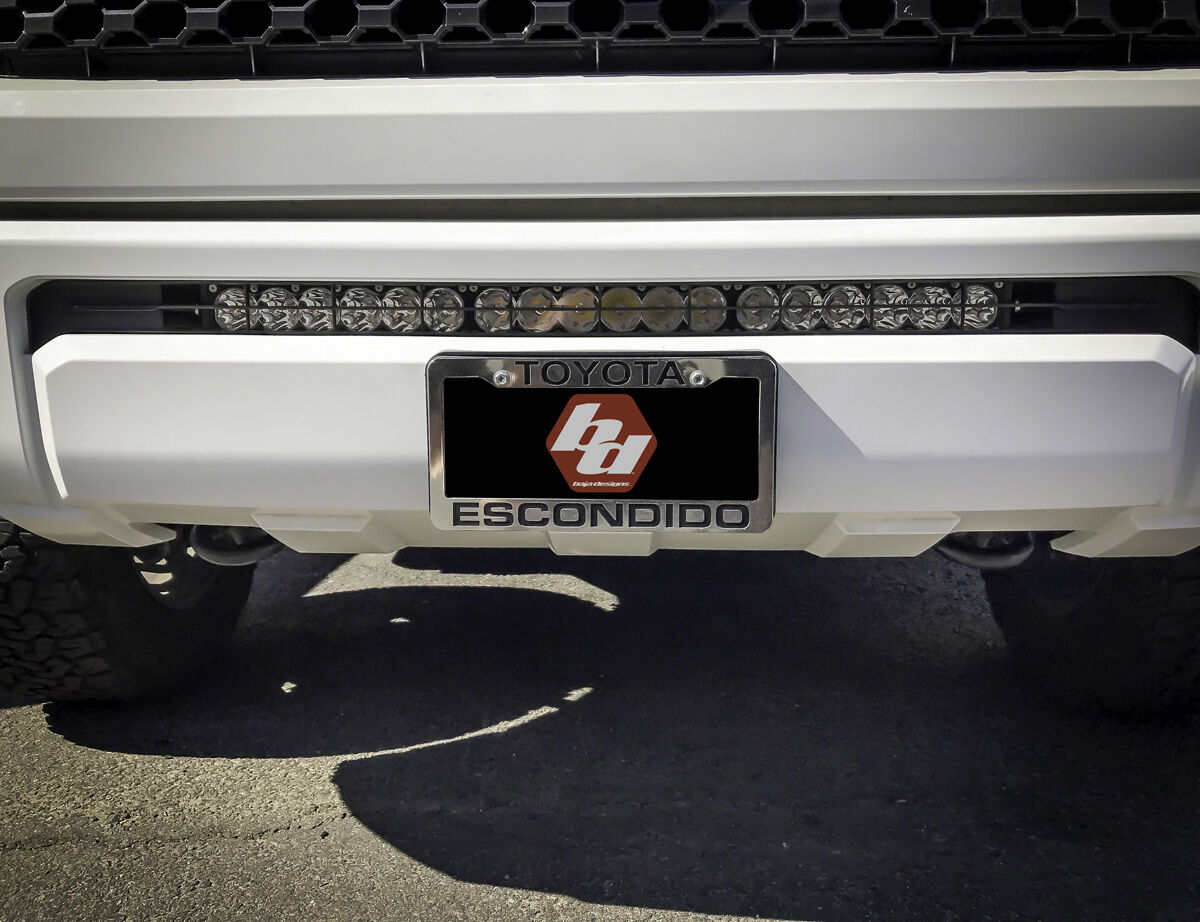

The OnX6+ lower grille light bar kit is perfectly concealed behind the lower grille for added safety and includes the light bar, mounts, wiring harness, and all necessary mounting hardware for a clean installation without the need for drilling or modification.
Backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.

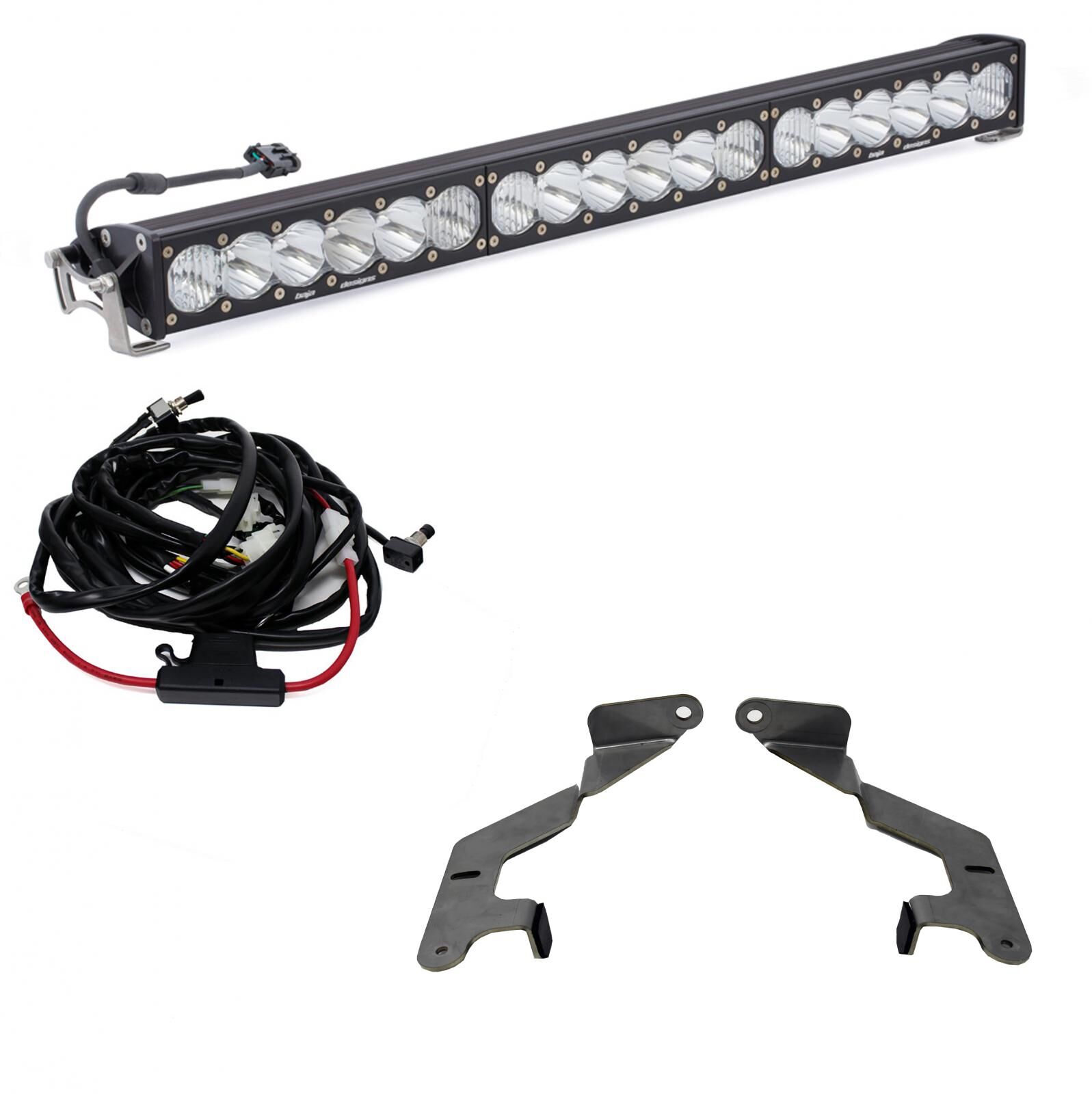

Kit Includes:
- (1x) OnX6+30-inch Light Bar - Driving Combo Clear
- (2x) Mounting Brackets
- (1x) Wiring Harness w/Mode Switch (640119)
- All necessary Mounting Hardware
Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Installation Notes:
Professional installation is recommended.
Specifications:
Universal: No.
Sold As: Kit.
Series: OnX6 Series.
Light Pattern: Driving/Combo.
Housing Type: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize.
Life Expectancy: 49,930 Hours.
Lens Material: Hard Coated Polycarbonate.
Lens Color: Clear.
IK10 Compliant: IK10 Compliant (Mechanical Impact Testing).
Finish: Hard Anodized.
Brackets Included: Yes.
Waterproof Rating: IP69K (Waterproof up to 9ft Pressure Washable).
Bezel Material: Billet Machined Aluminum.
Bracket Material: Stainless Steel.
Bar Length: 30.0 Inch.
Bar Type: Single Straight.
Backlight Warranty: Lifetime Limited.
Fitment & Application:
- 2020 Toyota Tundra TRD Pro
- 2020 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
- 2019 Toyota Tundra TRD Pro
- 2019 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
- 2018 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
- 2017 Toyota Tundra TRD Pro
- 2017 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
- 2016 Toyota Tundra TRD Pro
- 2016 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
- 2015 Toyota Tundra TRD Pro
- 2015 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
- 2014 Toyota Tundra 1794 Edition/LTD/Platinum/SR/SR5
