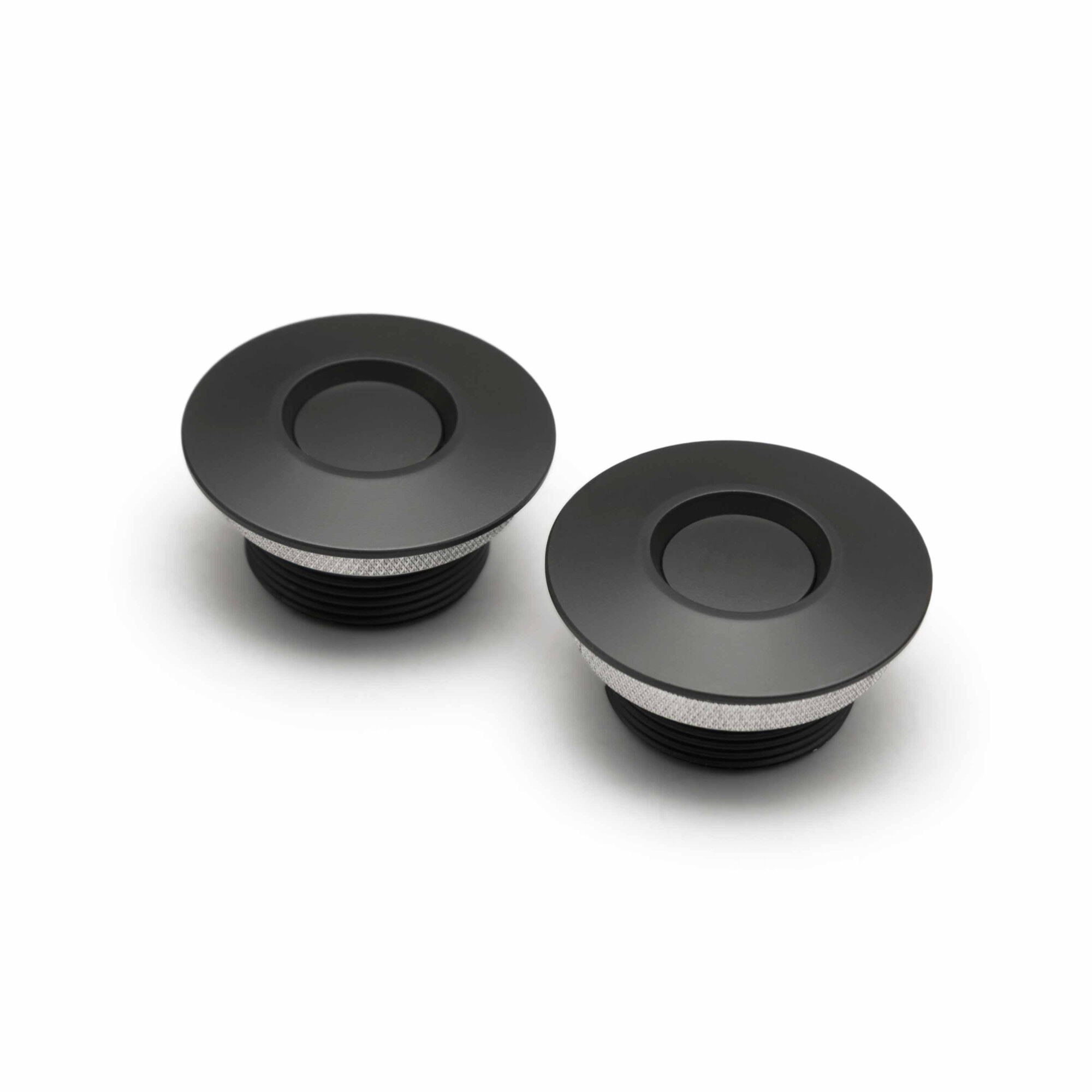

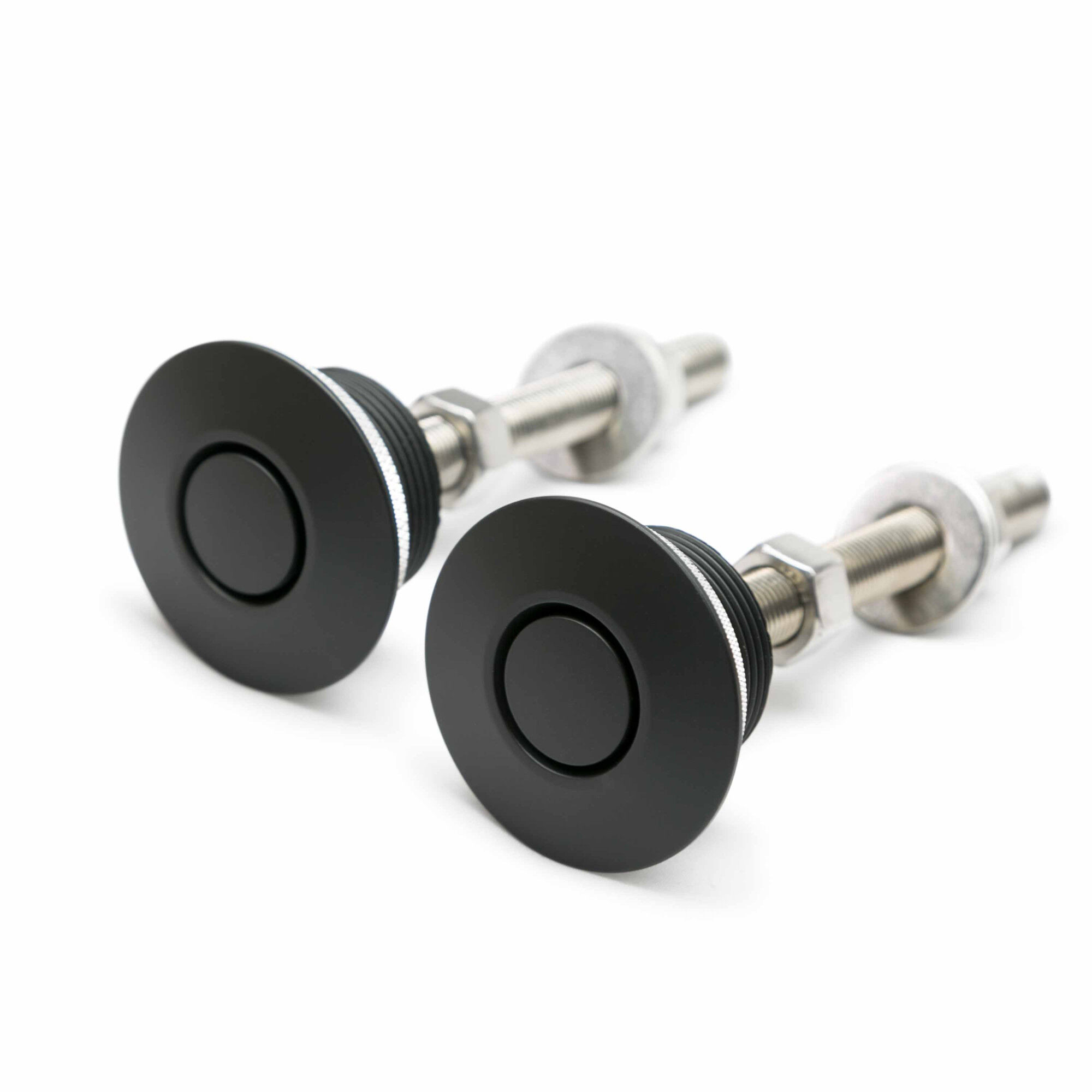

Designed with the import performance market in mind, the QL-50 series hood pin kits deliver the same push button function that you've come to expect from Quik-Latch Products while retaining serious holding ability that is required of hood pins. The reduced phyiscal presence of the 50 series hood pin kits ensures a clean and unassuming look that will blend in with your overall build.
Specifications:
- Materials 6061 T6 Aluminum / Black Anodized Aluminum
- Holding Force: 700 lbs static pull force per latch
- Weight of Kit: 1 pound 8 ounces (680 grams)
- Overall Height of latch: 1.60 inch (40.64mm)
- Height Below Mounting Flange: .1.34 inch (34.04mm)
- OD of the latch mounting flange: 2.50 inch (63.50mm)
- Hole size required to mount latch: 1.50 inch (38.10 mm)
- Pin dimensions: 0.5 inch ball with 1/2" fine thread pitch
- Pin Length: 4 inches (101.60 mm)
- Retaining Ring: 2.150 inch (54.61mm) OD x .305 inch (7.75mm) thickness
Show-ready. No painting required.
Uses professional, high quality 3K 2X2 twill weave carbon fiber fabric.
Professional installation is required.
| SKU | HoodPins QL50LPBP |
|---|---|
| Vehicle Year | Universal |
| Vehicle Make | Universal |
| Vehicle Model | Universal |
| Vehicle Trim | Universal |
| Vehicle Body Type | Universal |
| Product Category | Tools and Hardware |
| Professional Installation Recommendation | Professional installation required. |
| Material/Finish | Metal |
| Brand | Seibon Carbon |
|---|---|
| Part Number | SEI-HoodPins QL50LPBP |
| Shipping Method | UPS/FedEx/USPS Ground |
