Xtrude Tranmission Cooler with Fan Complete Kit for 1/2in Lines Dodge/Ford by BD Diesel

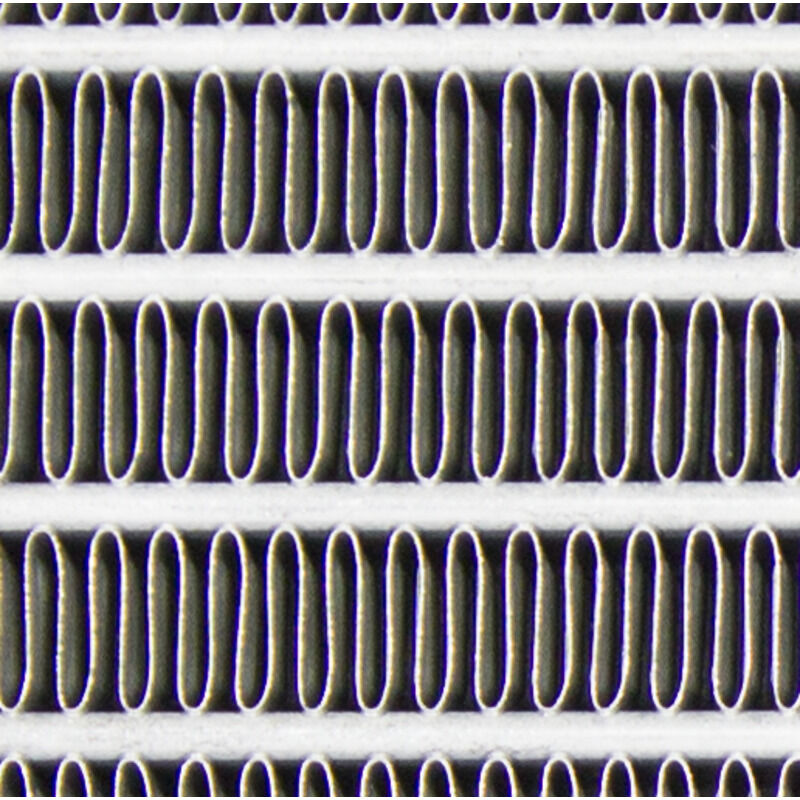

Coolers, providing 22 percent more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

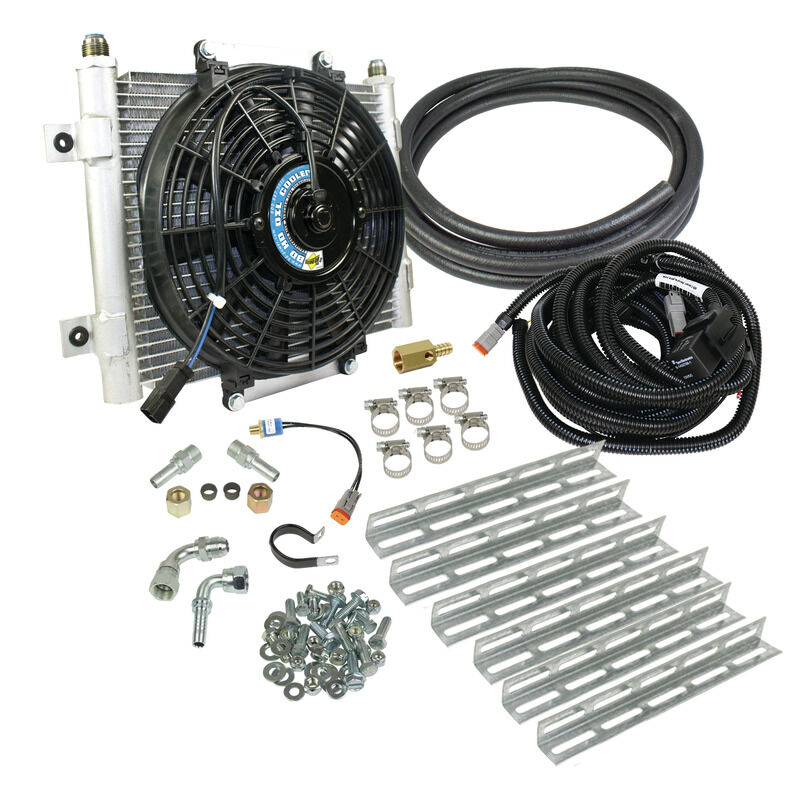

This combination gives BD's Xtruded Tranmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Tranmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal.

The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

Install Time:

• 3 Hours 30 Minutes

Warranty:

Parts

12-Months
24,000 Miles

Note:
Intended to be used in conjunction with factory Tranmission coolers and not as stand-alone units

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• 22 percent more cooling over other designs

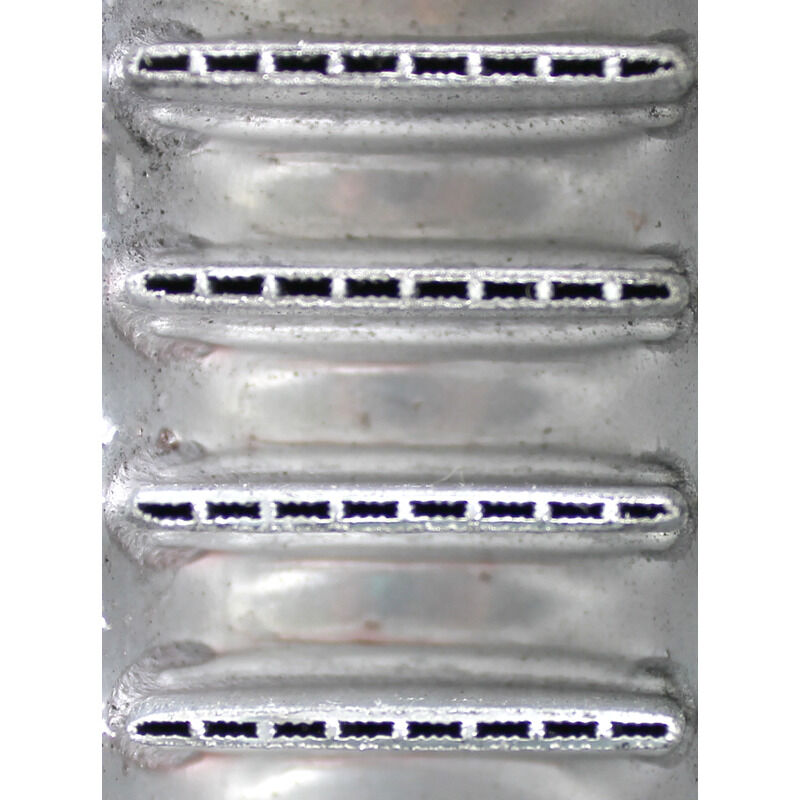

• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Kits complete with all fittings, clamps, hoses and hardware

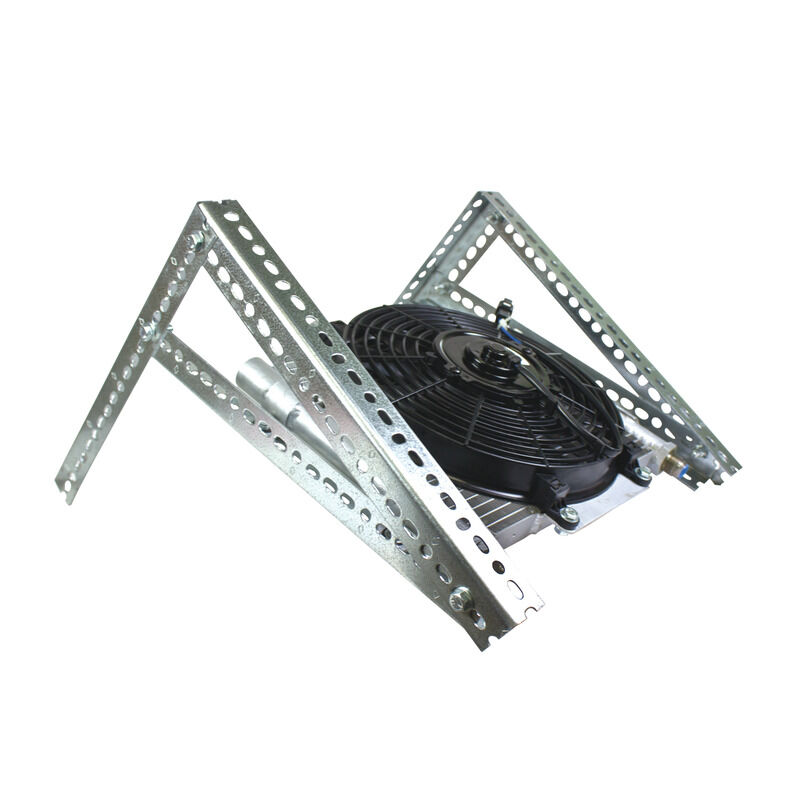

• Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
• Ford 5R110/6R140 - 1/2-inch Cooler Lines)
