BD Diesel USA is a performance-oriented company specializing in high-quality diesel and heavy-duty truck components and upgrades. Their products are engineered to handle high pressure, high temperature, high load, and extended operation, not just occasional use. With years in the field (including intensive hours of idling, towing, and heavy usage), the BD Diesel's engineering and R&D is informed by real use cases.

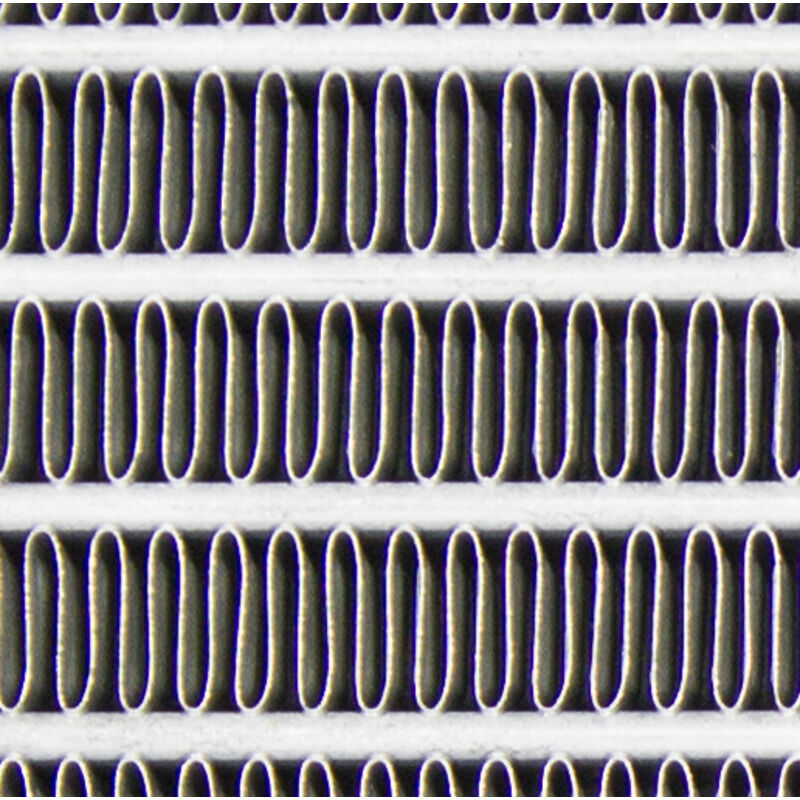

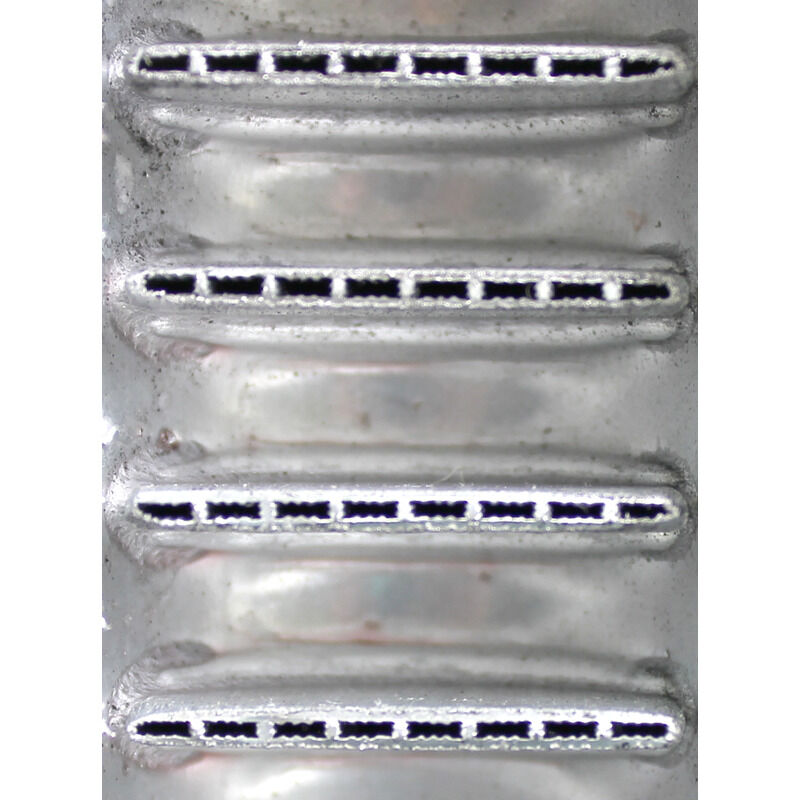

Coolers, providing 22 percent more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.
Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

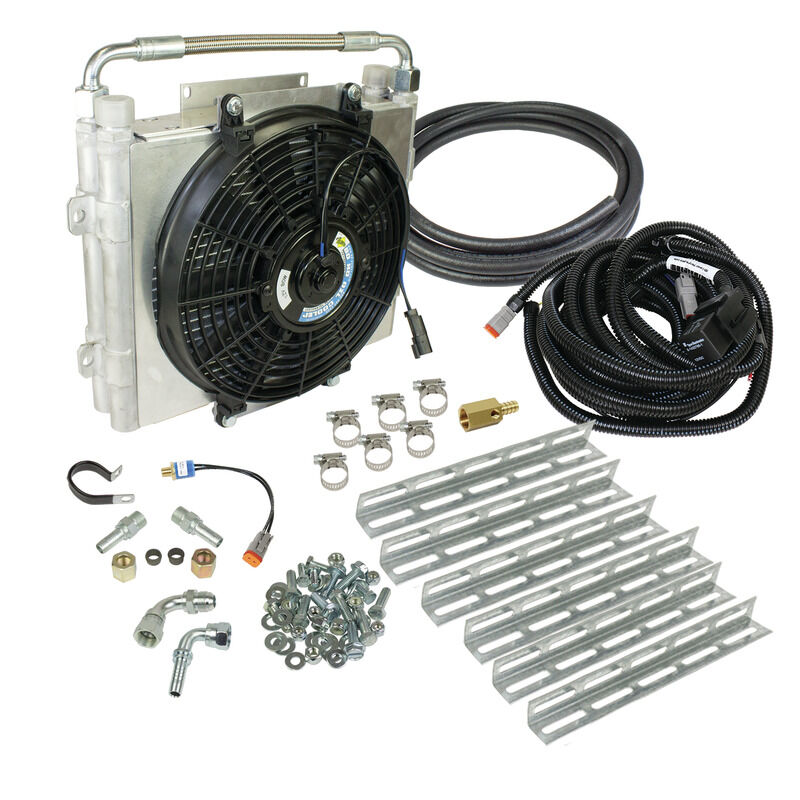

This combination gives BD's Xtruded Tranmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Tranmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal.
The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Install Time:
3 Hours 30 Minutes
Warranty:
Parts
Note:
Intended to be used in conjunction with factory Tranmission coolers and not as stand-alone units
Emissions:
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)
Features:
Professional installation is required.
Series: Xtrude.
EMS Code: 4.
Installation Time: 3.5 Hours.
Warranty: 12-Months/24,000 Miles.
| Brand | BD Diesel |
|---|---|
| Part Number | BDD-1030606-5/8 |
| Shipping Method | UPS/FedEx/USPS Ground |
