BD Diesel USA is a performance-oriented company specializing in high-quality diesel and heavy-duty truck components and upgrades. Their products are engineered to handle high pressure, high temperature, high load, and extended operation, not just occasional use. With years in the field (including intensive hours of idling, towing, and heavy usage), the BD Diesel's engineering and R&D is informed by real use cases.

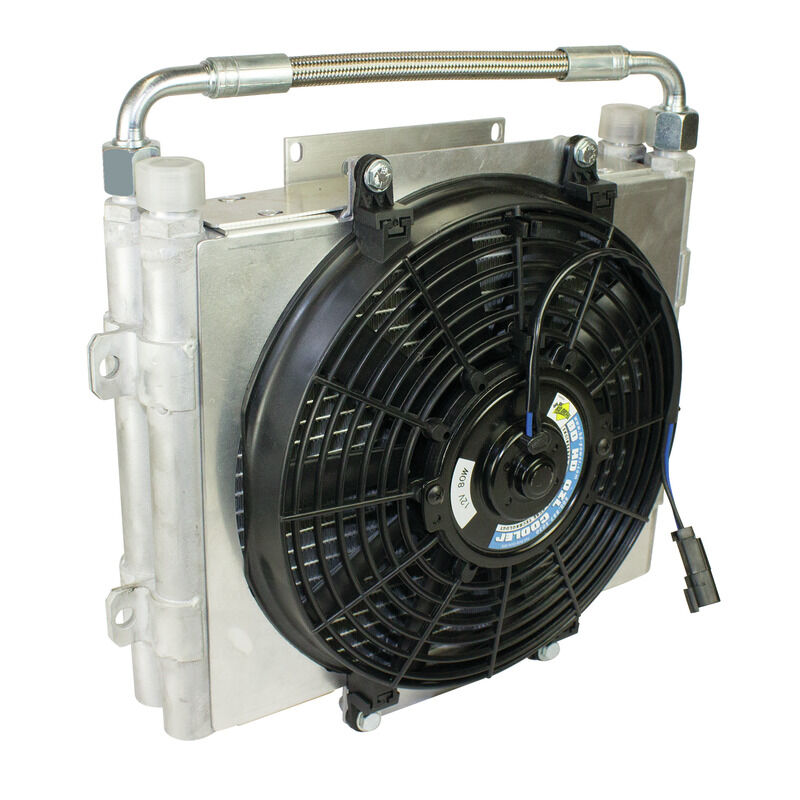

Hot Tranmission oil has to be Cooled to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350 percent temperature drop versus the factory system - 36 percent better temperature drop than BD's standard single core kit.
The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure.
The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.
Warranty:
Parts
Note:
Exceeding the duty cycle may result in voiding the
Warranty:
Intended to be used in conjunction with factory Tranmission coolers and not as stand-alone units
Emissions:
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)
Features:
Professional installation is required.
Series: Xtrude.
EMS Code: 4.
Warranty: 12-Months/24,000 Miles.
| Brand | BD Diesel |
|---|---|
| Part Number | BDD-1300601-DS |
| Shipping Method | UPS/FedEx/USPS Ground |
